Product Description

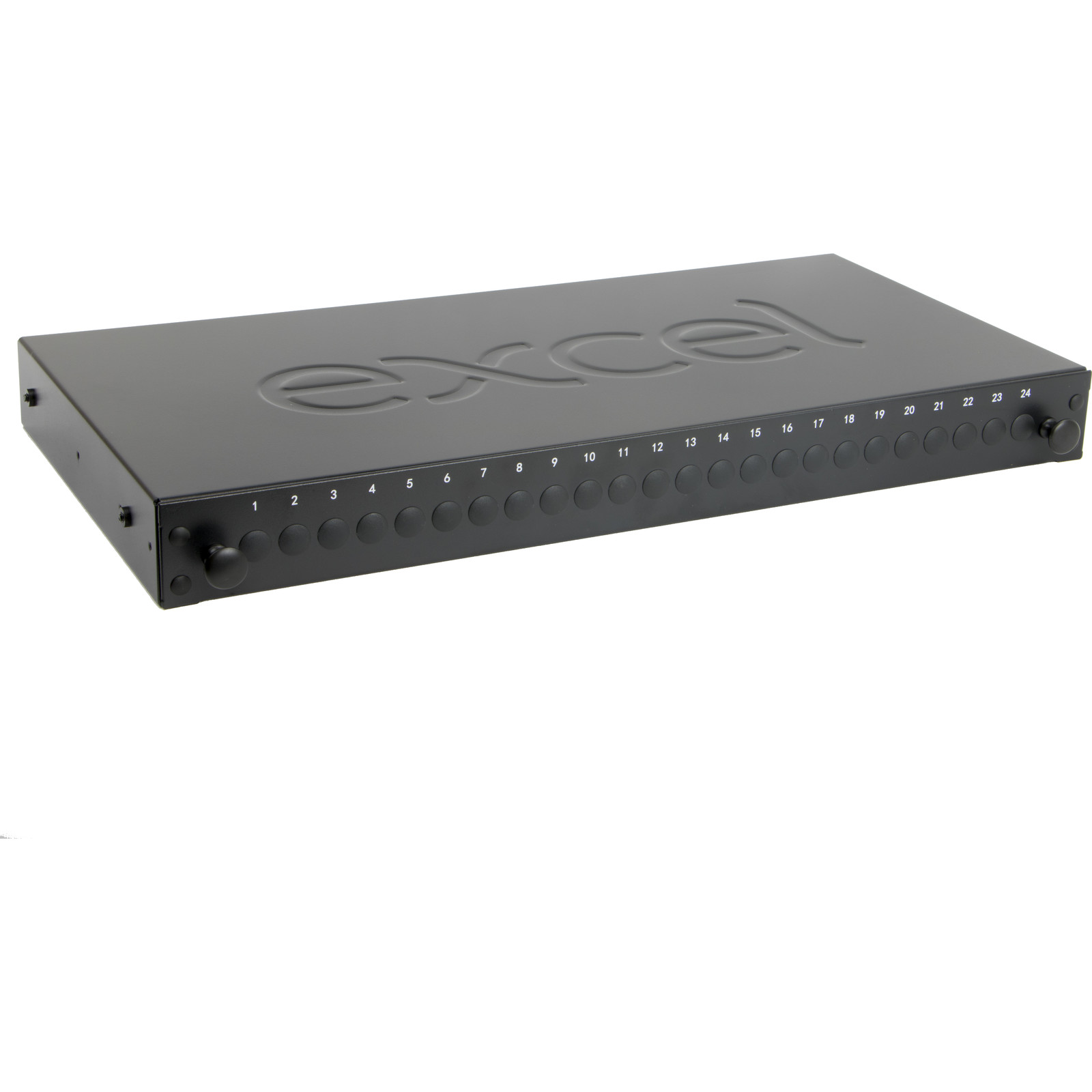

200-950 EXCEL PATCH PANEL UL for ST and FC ADAPTORS The Excel range of ST patch panels are sliding drawer ‘tray style’ housings suitable for either direct termination or splicing of up to 24 fibres in 1U of rack space. Each panel is manufactured from high quality 2mm thick steel with a black powder coat finish to provide a strong and durable unit. To the front of the patch panel the specified number of ST adaptors are loaded from left to right. Each adaptor is fitted with a colour coded dust cap, black for multimode, red for singlemode. Each adaptor accommodates one terminated fibre. Each panel has included within it a set of adjustable fixing brackets, and a cable management pack which includes cable entry glands, cable ties, and a 24-way splice bridge.
Features
Multimode and Singlemode
Choice of port density
1U rack space design
Adjustable fixing arms included
Multiple cable entry to rear
Sliding drawer on ball bearing runners
Management and Fixing Kit Included
Up to 24 adaptors per patch panel
Port identification numbers
Added on:
21 May 2024
Specification
- Brand : Excel
- Part Number : 200-950
- Suitable for number of fibre cores : 24
- Suitable for number of module inserts : 24
- Type of connector external : ST
- Type of connector interior : ST
- Colour : Black
- Ral-number : 9005
- Mounting method : 482.6 mm (19 inch) mounting
- Number of rack units (ru) : 1
- Height : 43.5 mm
- Width : 483 mm
- Depth : 219.5 mm
