545 4281 2C VVBM GW FP EXCEL CL 42U 800W 1000D 2C COLO RACK GREY WHITE
Payment Methods:
Customer Reviews
Product Description

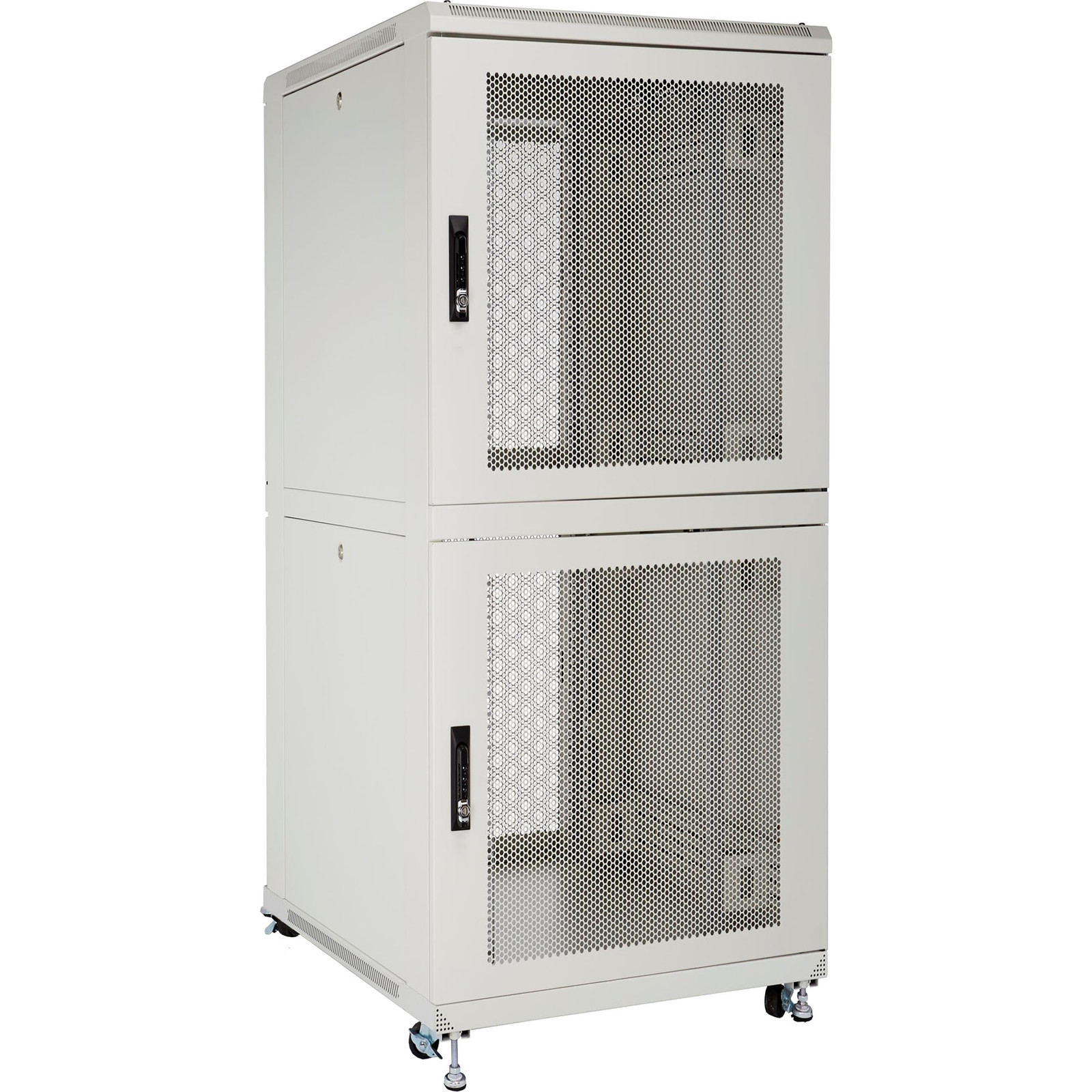

545-4281-2C-VVBM-GW EXCEL CL 42U 800W 1000D-2C COLO RACK GREY WHITE The Environ CL series of multicompartment floor standing racks are designed for co-location installations and applications that require enhanced levels of access security. The range is based on the proven and popular ER series chassis and is available in a 42U or 47U heights, 600mm or 800mm wide, grey white or black and a choice of 2 or 4 compartments. Each compartment is created by the use of a full depth dividing panel which runs from front to rear of the rack providing both separation and a mounting shelf if so desired. Within each compartment are front and rear adjustable equipment mounting rails.
Features
Choice of 2 or 4 compartments
Jacking feet included
Heavy duty lockable casters included
19″ profiles marked with U height position
Top and Bottom cable entry to each compartment
Cable entry secure to each compartment
Baying kit included
Can be bayed with or without side panels
600 kg load capacity
Brush strip cable entry in roof and base
Jacking feet and casters can be fitted simultaneously
Removable side panels
Swing handle combination locks on all doors, with key lock
Added on:
11 May 2024
Specification
- Brand : Excel
- Part No : 545-4281-2C-VVBM-GW FP
- Mounting profile : Front and rear
- Type of profile rail : L-shaped
- Number of doors : 4
- Type of ventilation : Passive
- Width : 800 mm
- Height : 2070 mm
- Depth : 1000 mm
- Modular spacing : 19 inch
- Number of rack units (ru) : 42
- Max. load capacity : 600 kg
- Colour : Black
