545 4781 4C VVBM GW FP EXCEL CL 47U 800W 1000D 4C COLO RACK GREY WHITE FP

SKU: IC96950VL1

Payment Methods:

Customer Reviews

Product Description

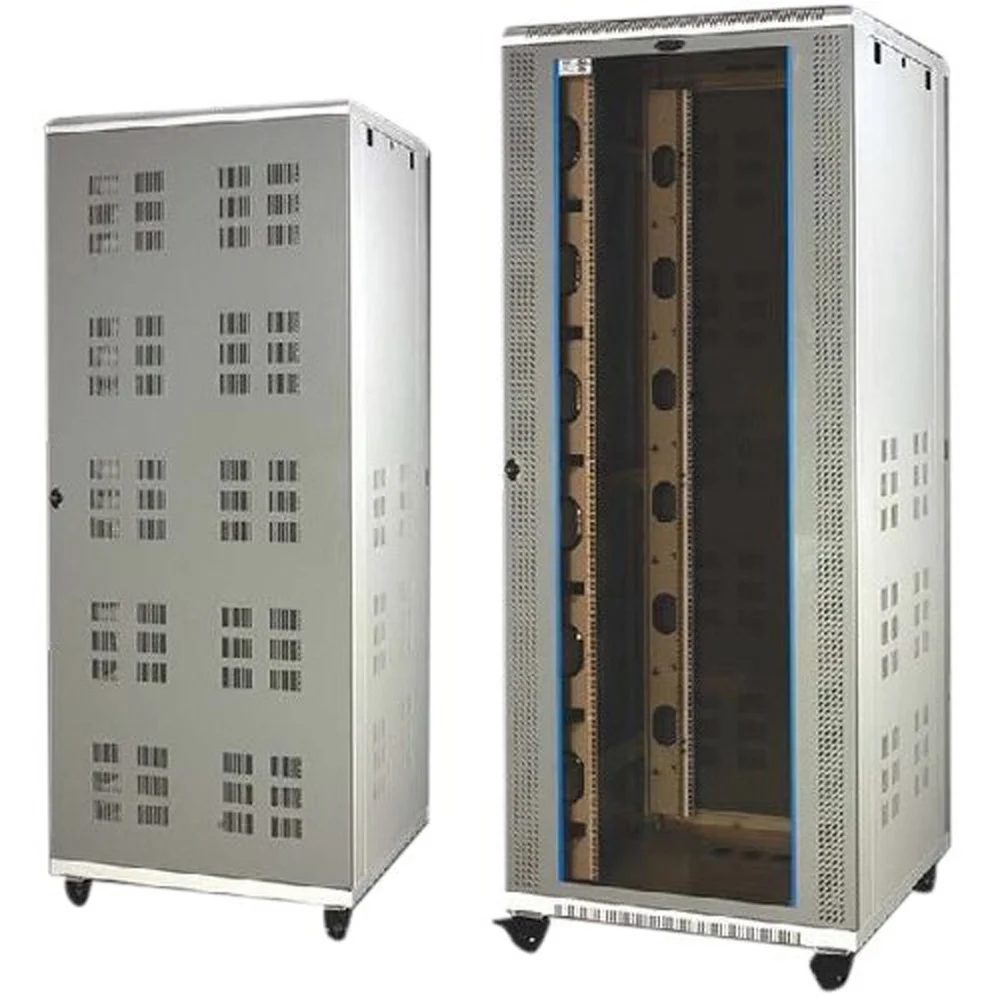

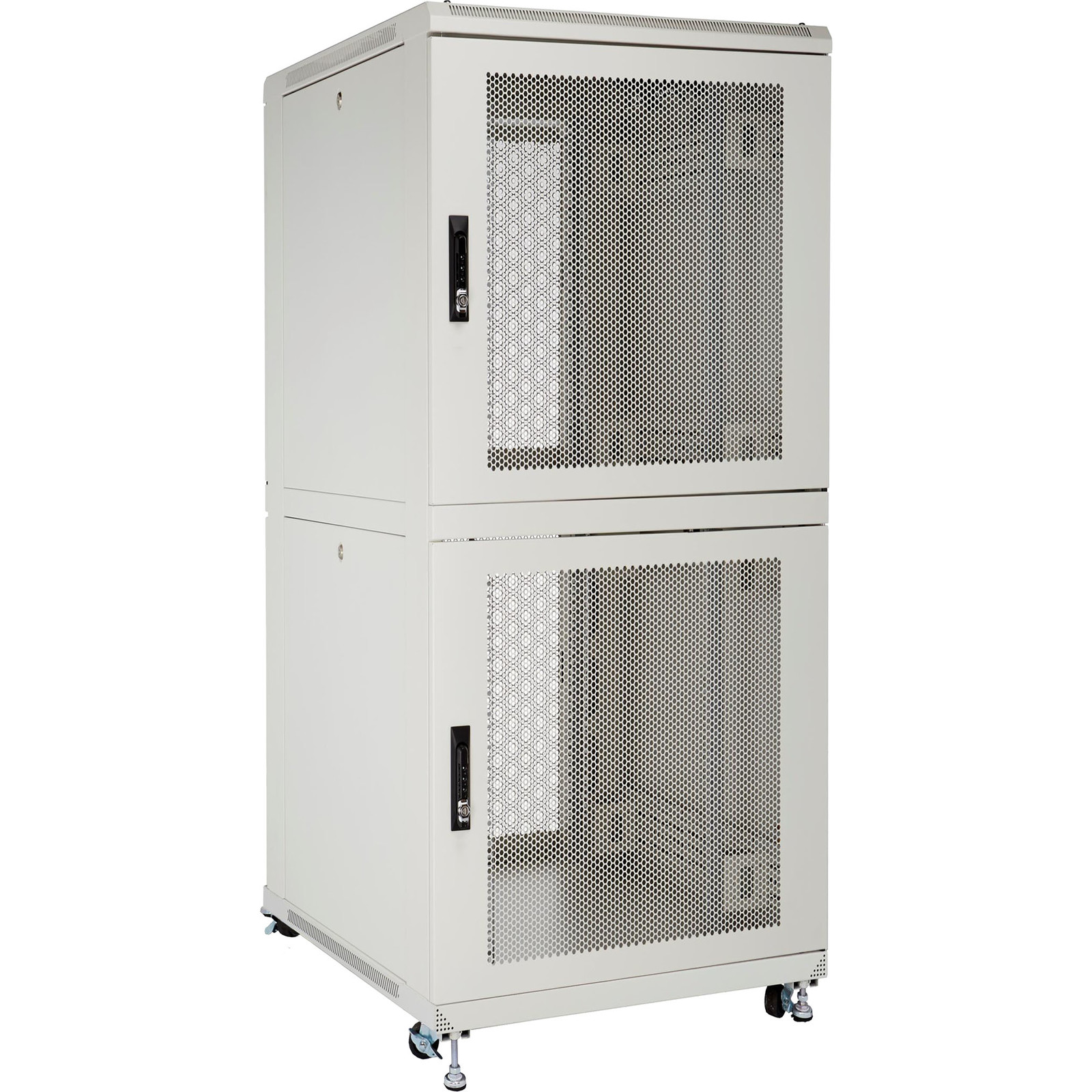

545-4781-4C-VVBM-GW-FP EXCEL CL 47U 800W 1000D-4C COLO RACK GREY WHITE-FP The Environ CL series of multicompartment floor standing racks are designed for co-location installations and applications that require enhanced levels of access security. The range is based on the proven and popular ER series chassis and is available in a 42U or 47U heights, 600mm or 800mm wide, grey white or black and a choice of 2 or 4 compartments. Each compartment is created by the use of a full depth dividing panel which runs from front to rear of the rack providing both separation and a mounting shelf if so desired. Within each compartment are front and rear adjustable equipment mounting rails.

Features

Choice of 2 or 4 compartments
Jacking feet included
Heavy duty lockable casters included
19″ profiles marked with U height position
Top and Bottom cable entry to each compartment
Cable entry secure to each compartment
Baying kit included
Added on:
13 May 2024

Specification

  • Brand : Excel
  • Part No : 545-4781-4C-VVBM-GW-FP
  • Mounting profile : Front and rear
  • Type of profile rail : L-shaped
  • Number of doors : 8
  • Type of ventilation : Passive
  • Width : 800 mm
  • Height : 2230 mm
  • Depth : 1000 mm
  • Modular spacing : 19 inch
  • Number of rack units (ru) : 47
  • Max. load capacity : 600 kg
