Product Description

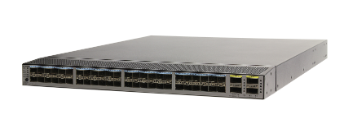

CE6810-48S4Q-EI The CE6800 provides 1.28 Tbit/s switching capacity, the industry’s highest performance in a 1 U ToR. The switch provides forwarding performance of 960 Mpps and supports L2/L3 line-speed forwarding. The CE6800 not only meets the requirements for high-density 10GE server access, but also provides the industry’s highest 10GE port density in a 1 U ToR with a maximum of 64*10GE ports. The CE6800 has four 40GE QSFP+ ports. Each QSFP+ port can be used as four 10GE SFP+ ports, providing a flexible network. CE6800 switches can work with CE12800 switches through the 40GE QSFP+ ports to build a non-blocking network platform.
Features
ghly Reliable, High-performance Stacking
The industry’s first 16-member stack system
A stack system of 16 member switches has a maximum of 768*10GE access ports that provide high-density server access in a data center.
Multiple switches in a stack system are virtualized into one logical device, making it possible to build a scalable, easy-to-manage data center network platform.
A stack system separates the control plane from the data plane. This eliminates the risk of single-point failures and greatly improves system reliability.
Added on:
07 October 2024
Specification
- Brand : Huawei
- Part Number : CE6810-48S4Q-EI
- Fixed 10GE interfaces : 48*10GE SFP+
- Switching Capacity : 1.28 Tbit/s
- Forwarding Rate : 960 Mpps
- Maximum power consumption : 238W
- Airflow Design : Front-to-back or back-to-front
- Dimensions (W x D x H) : 442 mm x 600 mm x 43.6 mm
- Weight : 10.4 kg (22.9 lb)
