Product Description

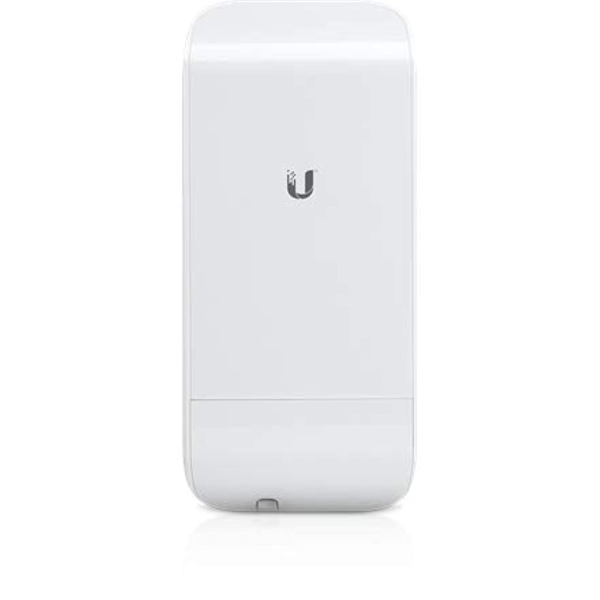

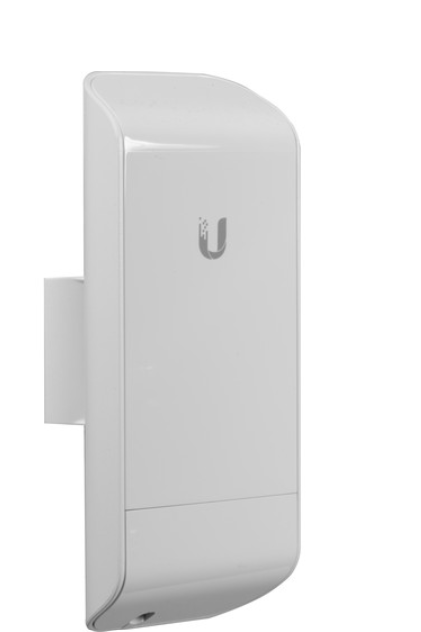

Ubiquiti Networks airMAX NanoStationlocoM 5 With the 5 GHz airMAX NanoStationlocoM from Ubiquiti Networks, you can provide your clients with reliable long-range network connections. Designed to support both Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) configurations, this Customer Premises Equipment (CPE) loco station features a panel antenna with dual-polarity 13 dBi gain to communicate with wireless devices over the 5 GHz signal band frequency. It also includes a 560 MHz Atheros MIPS 74Kc processor with 64MB of DDR2 memory and 8MB of flash storage, which can all be powered by connecting the included power-over-Ethernet (PoE) adapter to the 10/100 Mb/s Ethernet port to carry both data and power over a single cable. With its UV-stabilized plastic enclosure, the airMAX NanoStationloco M2 may be attached onto a pole with the included mount. Use the airOS software to configure and manage the airMAX NanoStationlocoM and its connected devices.

Features

Added on:
10 February 2025

Specification

  • Brand : Ubiquity
  • Wireless Frequency : 5 GHz
  • Inputs/Outputs : 1x RJ45 10/100 Mb/s Ethernet PoE (Unspecified)
  • Antenna Gain : 13 dBi
  • Transmit Power : 17 to 23 dBm
  • Antenna Placement : Internal
  • Inputs/Outputs : 1x RJ45 10/100 Mb/s Ethernet PoE (Unspecified)
  • RAM : 64 MB
  • Processor : Qualcomm Atheros
  • CPU : Single-Core: Up to 560 MHz MIPS 74Kc
  • Power Consumption : 5.5 W
  • Dimensions : 6.3 x 3.1 x 1.2″ / 161 x 80 x 31 mm
  • Weight : 6.3 oz / 180 g
