Product Description

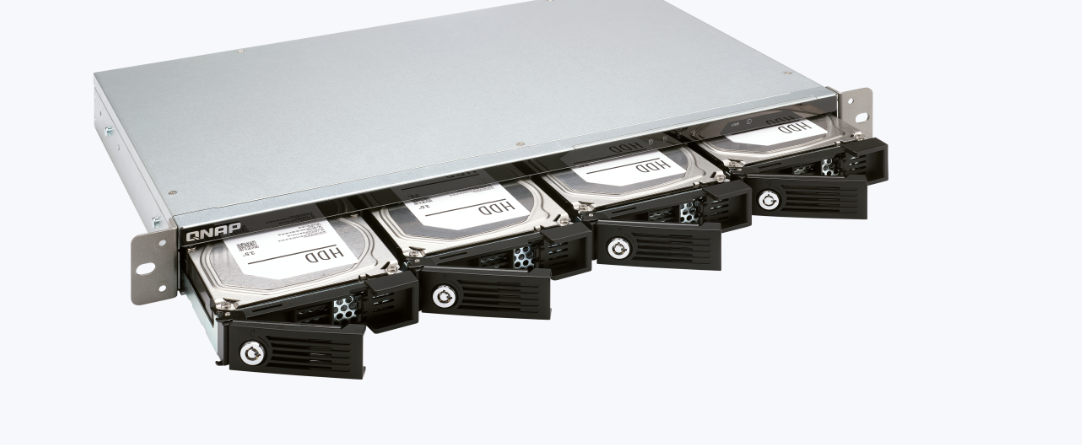

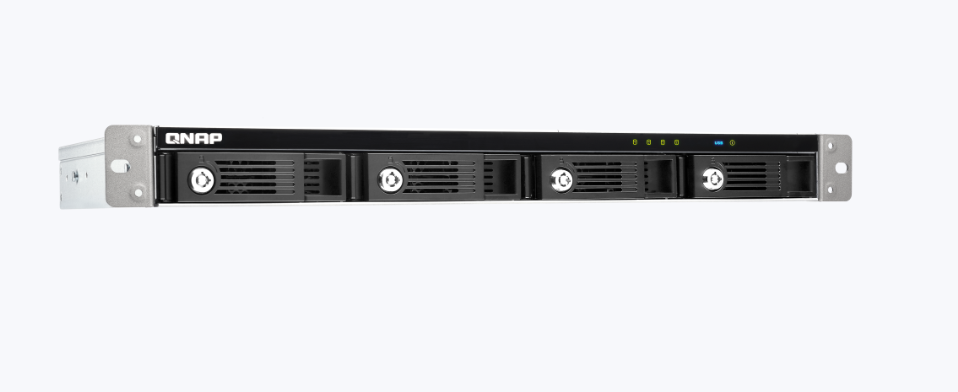

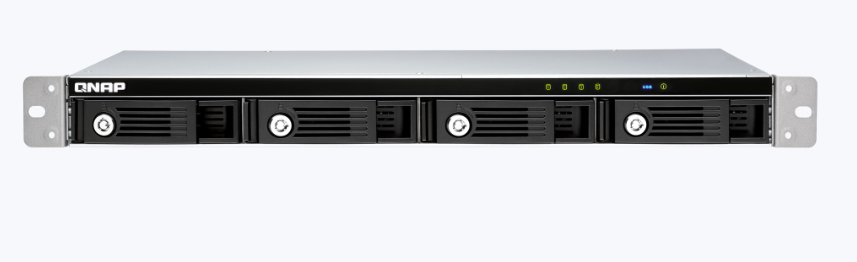

QNAP TR-004U 4-bay 1U 12″ short-depth rackmount NAS The TR-004U USB 3.2 Gen 1 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-004U can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content by connecting it via USB. The TR-004U features four 3.5-inch SATA drive bays with multiple RAID configuration options and USB 3.2 Gen 1 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
Features
USB 3.2 Gen 1 (5Gbps)
USB 3.2 Gen 1 Type-C port* for faster data transfer.
Supports SATA drives
Supports up to four SATA drives for reliable read and write performance.
Disk mode DIP switch
Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.
Added on:
25 March 2025
Specification
- Brand : QNAP
- JBOD Connection Interface : USB
- Main chip : Micro processor with hardware RAID
- Drive Bay : 4 x 3.5-inch
- USB 3.2 Gen 1 Port : 1 x Type-C USB 3.2 Gen 1 (USB 3.2 Gen 1)
- Form Factor : 1U Short Depth Rackmount
- Dimensions (HxWxD) : 44 × 439 × 291 mm
- Weight : 4.77 kg
- Power Consumption HDD Sleep Mode : 4.79 W
- Power Consumption Operating Mode, Typical : 18.9 W
- Fan : 2 x 40mm, 12VDC
