Product Description

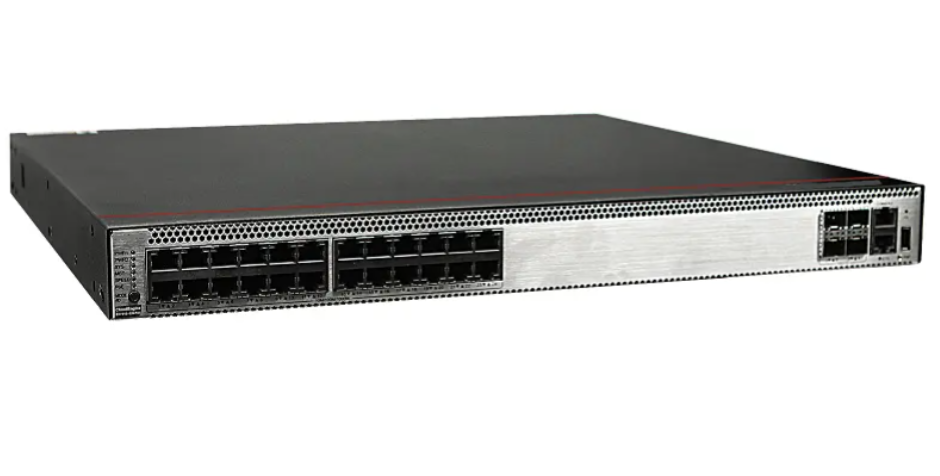

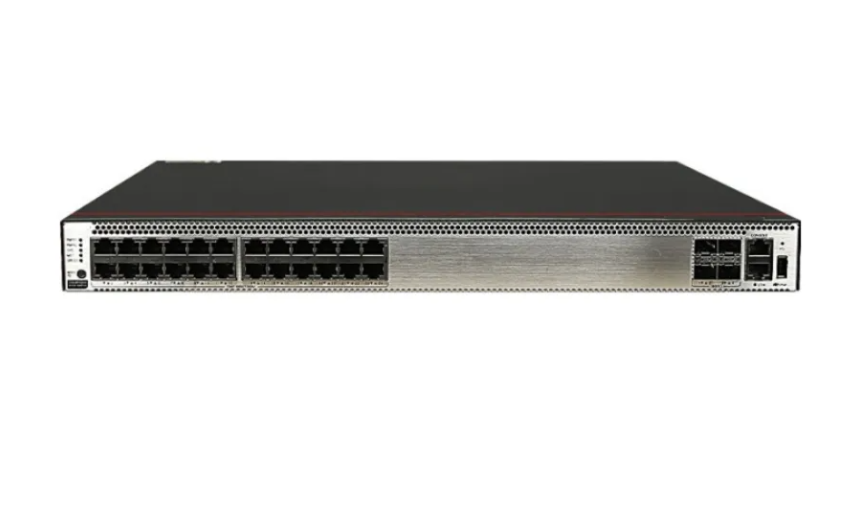

S5731-S24P4X Huawei CloudEngine The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
Features
Huawei CloudEngine S5731-S24P4X switch with 24-ports 4x10GE SFP+
With 1+1 power backup
PoE+
Forwarding performance: 96 Mpps
Switching capacity: 128 Gbps/672 Gbps
Added on:
07 October 2024
Specification
- Brand : Huawei
- Part Number : S5731-S24P4X
- Fixed Port : 24 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports
- Power supply type : 1000 W PoE AC (pluggable)
- Rated voltage range : AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
- AC input (1000 W AC PoE) : 90 V AC to 290 V AC, 45 Hz to 65 Hz
- High-voltage DC input (1000 W AC PoE) : 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification)
- Maximum power consumption : 121 W (without PD); 977 W (with PD, PD power consumption of 720 W)
- Storage temperature : -40? to +70?

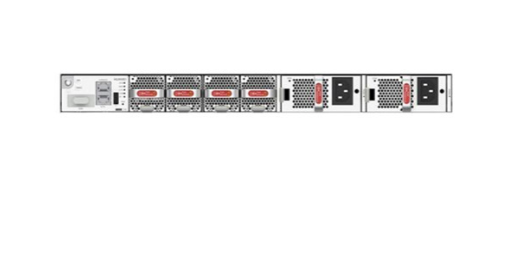

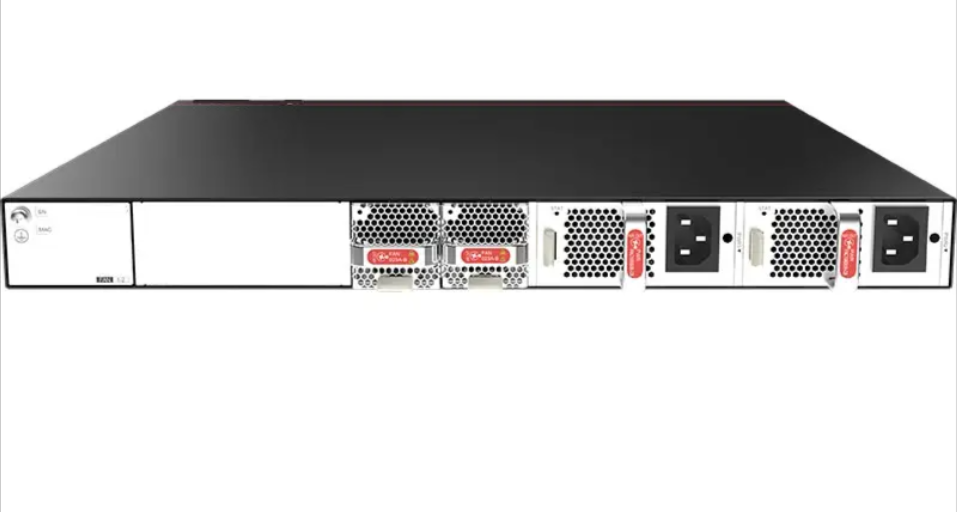

- Heat dissipation : Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans
- Dimensions (H x W xD) : 442 mm x 420 mm x 43.6 mm
- Chassis height : 1 U
