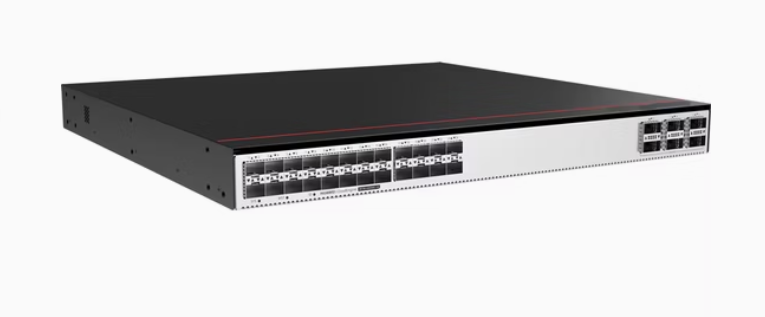

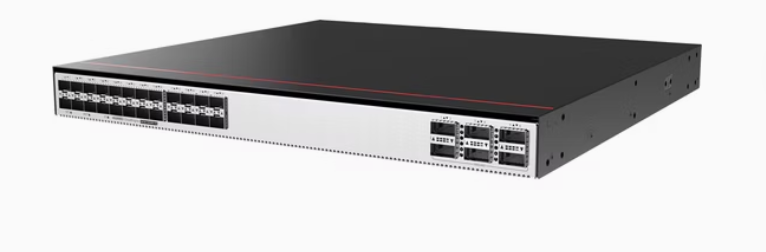

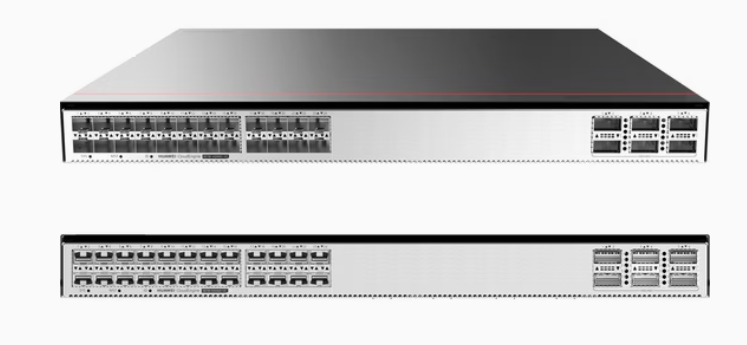

S6730-H24X6C-V2 Huawei Network Switch The CloudEngine S6730-H-V2 series offers a range of next generation 10 GE routing switches with 24, 28, or 48 downlink ports plus 6 x 40 GE uplink ports — which can be expanded to 100 GE through licensing — and one extended slot. Built on Huawei’s unified software platform , the series offers a range of various Intent-Driven Network (IDN) features, including support for Virtual Extensible Local Area Network (VXLAN) technology, which builds one network for multiple purposes. Meanwhile, a free mobility feature ensures a consistent user experience.
Features
Ultra-Fast Data Forwarding
Up to 48 x 10 GE downlink ports and 6 x 100 GE uplink ports.
VXLAN-based Virtual Networks
Support for VXLAN-based virtual networks, achieving “one network for multiple purposes”.
Added on:
25 February 2025
Specification
- Brand : Huawei
- Heat dissipation mode : Heat dissipation with fan, intelligent fan speed adjustment
- Power supply mode : Pluggable power supply
- Input voltage range [V] : – AC input: 90-290 V AC; 45-65 Hz – High-voltage DC input: 190 V DC to 290 V DC – DC input: -38.4 V DC to -72 V DC
- Rated input voltage [V] : – AC input: 100 V AC to 240 V AC; 50/60 Hz – High-voltage DC input: 240 V DC – DC input: -48 V DC to -60 V DC
- Memory : 4 GB
- Flash memory : 2 GB in total. To view the available flash memory size, run the display version command.
- Redundant power supply : 1+1 Pluggable AC and DC power modules can be used together in the same switch.
- Types of fans : Pluggable
- Console port : RJ45
- Power supply surge protection : – AC power module configured: ±6 kV in differential mode, ±6 kV in common mode – DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
