AirEngine5761RS 11 Huawei AirEngine
Payment Methods:

Customer Reviews
Product Description

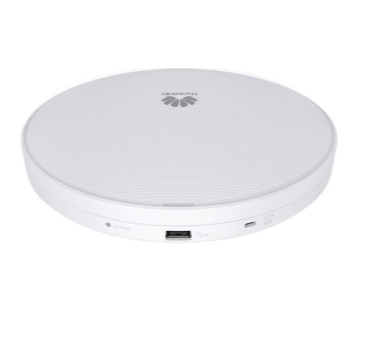

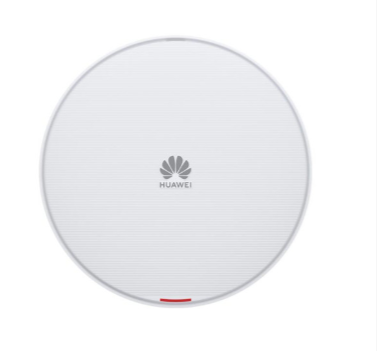

AirEngine5761RS-11 Huawei AirEngine This access point provide services simultaneously on both the 2.4 GHz and 5 GHz bands at a rate of up to 575Mbps at 2.4 GHz (2×2), 1.2 Gbps at 5 GHz (2×2), and 1.775Gbps for the device. At the same time, built-in smart antennas enable always-on Wi-Fi signals for users, significantly enhancing users’ wireless experiences. AirEngine 5761-11 supports high bandwidth and high concurrency with a compact size, facilitating flexible deployment and saving customers’ investment. Moreover, it can analyze the spectrum of non-Wi-Fi interference sources and identify them, including baby monitors, Bluetooth devices, digital cordless phones (at 2.4 GHz frequency band only), wireless audio transmitters (at both the 2.4 GHz and 5 GHz frequency bands), wireless game controllers, and microwave ovens. Coupled with Huawei NCE-Campus, the precise locations of the interference sources can be detected, and the spectrum of them displayed, enabling the administrator to remove the interference in a timely manner. These strengths make AirEngine 5761-11 ideal for scenarios requiring high bandwidth and high-quality network experience, such as small and midsize enterprise offices, hospital, cafes.
Features
1 x GE electrical port
Support built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality
USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP
MU-MIMO on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit data to and receive data from multiple STAs simultaneously and multiplying the utilization of radio spectrum resources.
New Wi-Fi 6 technologies such as 1024QAM modulation, more subcarriers, and more efficient Symbol scheduling enable the 2.4 GHz radio rate to reach 0.575 Gbps, the 5 GHz radio rate to reach 1.2 Gbps, and the device rate to reach 1.775 Gbps.
Added on:
29 November 2024
Specification
- Brand : Huawei
- Model : AirEngine 5761-11
- Description : AirEngine5761-11(11ax indoor,2+2 dual bands,smart antenna,USB,BLE)
- Power Input : PoE power supply: In compliance with 802.3at/af.
- Maximum Power Consumption : 15.3 W (excluding USB)
- Antenna Type : Built-in Smart Antennas
- Maximum Rate : 1.775 Gbit/s
- Ground : floating ground
- USB : USB 2.0
