Product Description

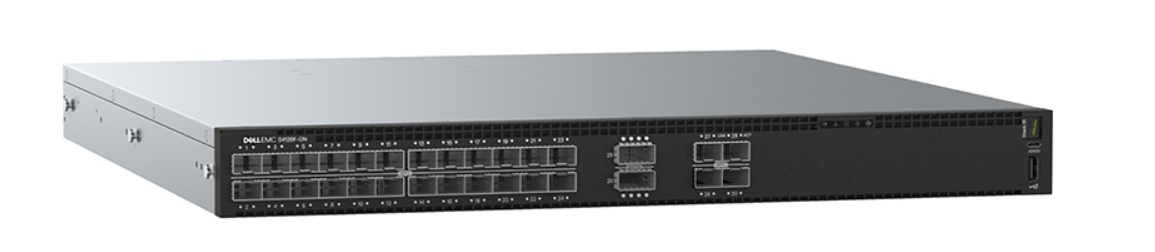

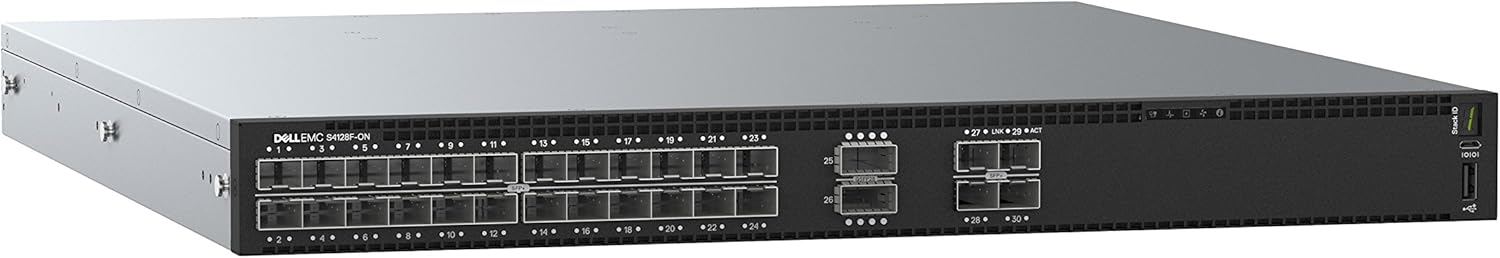

Dell EMC Networking S4128F-ON The S4100-ON 10GbE switches comprise DellTechnologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art 100GbE uplinks, fibre channel connectivity and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation top-of-rack open networking switches offer optimum flexibility and cost-effectiveness for the enterprise, midmarket and tier 2 cloud service providers with demanding compute and storage traffic environments.
Features

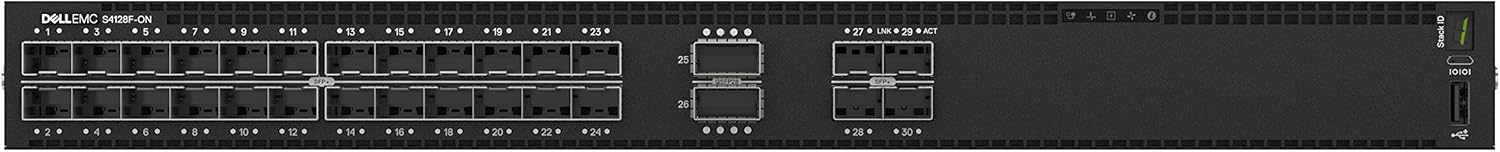

1RU high-density 10/40/100 GbE ToR switches with up to 28 ports of 8/16 fibre channel, two ports of 40 GbE (QSFP+), and up to four ports of 100GbE (QSFP28) or four ports of 8/16/32G fibre channel
Multi-rate 100GbE ports support 10/25/40/50 GbE. 40GbE ports support 10GbE. 10GbE ports support 1GbE. Up to four different simultaneous speeds are possible in a given profile.
960Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4128F-ON and S4128T-ON
VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance
Converged Network support with DCB
Added on:
06 November 2024
Specification
- Brand : Dell
- Part Number : S4148F-ON
- Ports : 28xSFP+ 2xQSFP28
- Max 10GbE density : 36 (28 SFP+ and 8 via QSFP28 breakout)
- Max 25GbE density : 8 via QSFP28 breakout
- Switching capacity : 960Gbps
- Throughput : 720Mpps
- Max power consumption : 260W
- Typical operating power : 160W
- Weight : 19.66 lbs
