MX204-HWBASW-AC-FS MX204 FIXED AC SYSTEM HW OS The SDN-ready MX204 3D universal edge router is a cloud-grade routing platform that offers the customers ultra-high density and throughput in a space- and power-optimized package. The MX204 addresses the emerging edge and metro Ethernet networking needs of service providers, mobile, web-scale operators, and MSOs by delivering 800 Gbps of throughput in support of high-density 10GbE, 40GbE, and 100GbE interfaces – all in just one rack unit. The MX204 supports a comprehensive suite of routing, switching, security, and service features, including support for automation and telemetry capabilities that serve as the foundation for the future Self-Driving Network. Additionally, the MX204 supports the stringent timing and synchronization requirements of mobile and financial services.
Features
Product Description

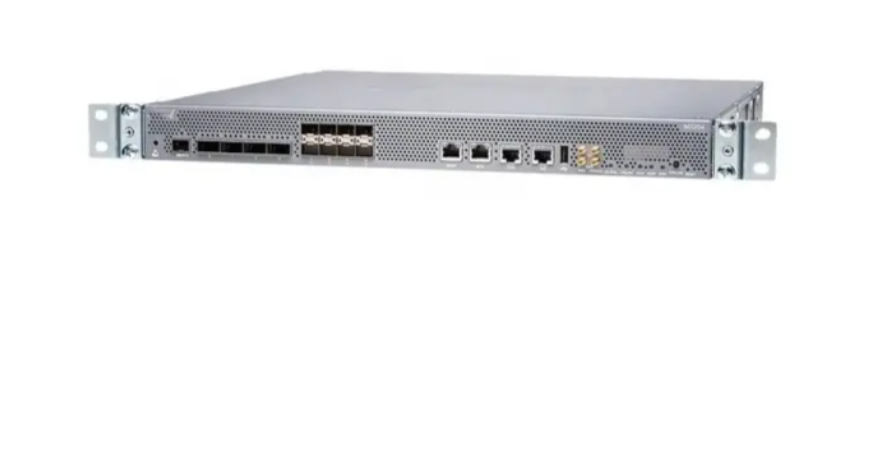

Juniper Networks MX-series MX204 – router – rack-mountable
Device Type
Router
Enclosure Type
Front to back airflow rack-mountable – modular – 1U
Added on:
25 February 2025
Specification
- Brand : Juniper
- Device Type : Router
- Enclosure Type : Front to back airflow rack-mountable – modular – 1U
- Connectivity Technology : Wired
- Performance : Switching capacity: 400 Gbps
- Network / Transport Protocol : IPSec
- Compliant Standards : NEBS, GR-1089-CORE
- RAM : 32 GB DDR4 SDRAM
- Hard Drive : 400 GB
- Interfaces : Management: 1 x RJ-45 ¦ Console: 1 x RJ-45 ¦ LAN: 4 x 100Gb Ethernet – QSFP28 ¦ LAN: 8 x 10Gb Ethernet – SFP+ ¦ USB: 1 x 4 pin USB Type A
- Power Device : Internal power supply
- Voltage Required : AC 100-240 V (50/60 Hz)
