Product Description

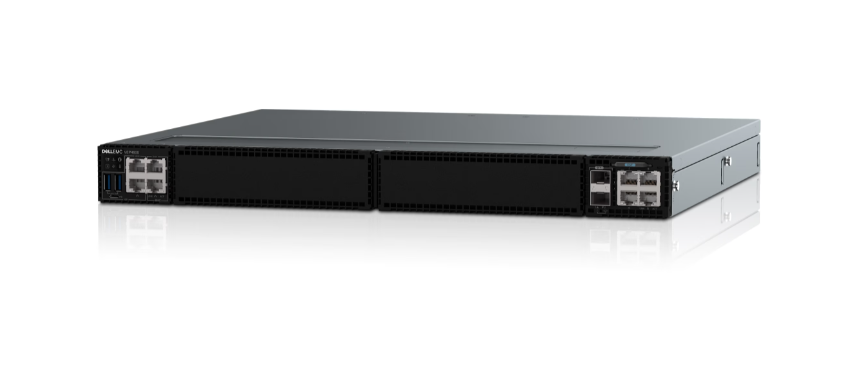

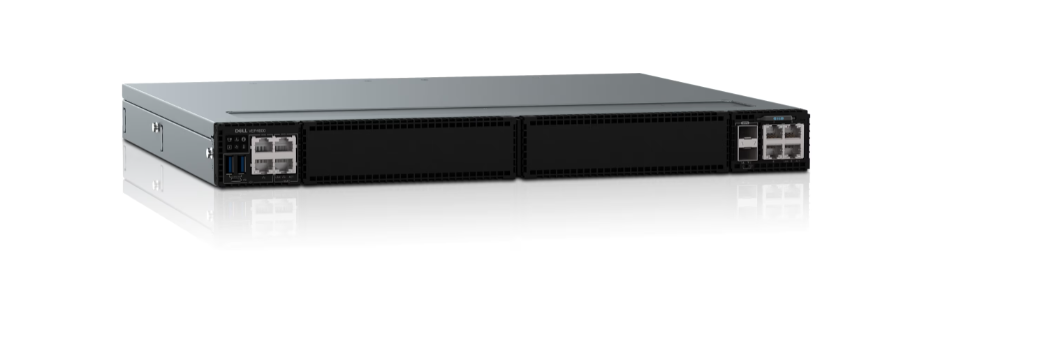

Networking Virtual Edge Platform 4600 16 Core The VEP4600 is a Dell networking platform purpose-built for next-generation access deployments. The VEP4600 is a Universal CPE (uCPE) and is ideal for hosting SD-WAN and other VNFs (Virtual Network Functions) like routing, firewall or deep-packet inspection. It offers hosted virtualized network functionality, with applicability for the SP Edge and Enterprise Branch. The VEP4600 is 1 RU sized, using the latest Intel Xeon D-2100 x86-based processor which is optimized for networking. Dell Technologies is the first to market with Xeon-D for SD-WAN. The VEP4600 will provide high performance and the necessary headroom for hosting VNF services, using 3 design principles:
Features
Purpose-built
Future-ready
Validated choice
Added on:
07 November 2024
Specification
- Brand : Dell
- CPU : Intel Xeon-D 2100 (4,8 and 16 core)
- Networking ports : 4 x 1GE 2 x 10GE
- Management ports : 2x – 10/100/1000Base-T: one for CPU and one for BMC
- USB ports : 2x – USB type A receptacle (female) ports supports USB 3.0 1x – Micro USB type B receptacle (female) port, available for console port
- Console ports : 2x – Serial: one for CPU and one for BMC
- Memory : 4 DIMM slot (up to 64GB in standard configuration, upgradable to 128GB with custom upgrade)
- Storage Option : 2x M.2 SATA (up to total 960GB in standard configuration, upgradable to 1.92TB with custom upgrade)
- Expansion slots : 2 x expansion slots. Expansion card options: 4X10Gb DA/SFP+, 2X10 Gb DA/SFP+ with 2X 1Gb, 4X1Gb=
- Power Supplies : Standard configuration: 16 core (2 PSU), 8 core (1 PSU), 4 core (1 PSU)

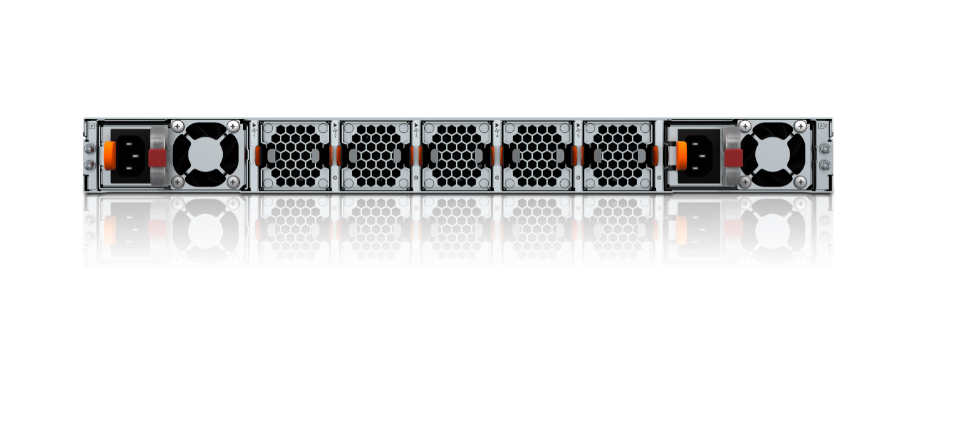

- Fans : Standard configuration: 16 core (5 fans), 8 core (4 fans), 4 core (4 fans)
- Airflow : Air flows from I/O side to PSU side
- Power Input AC : 100 to 240 VAC, 50/60 Hz
