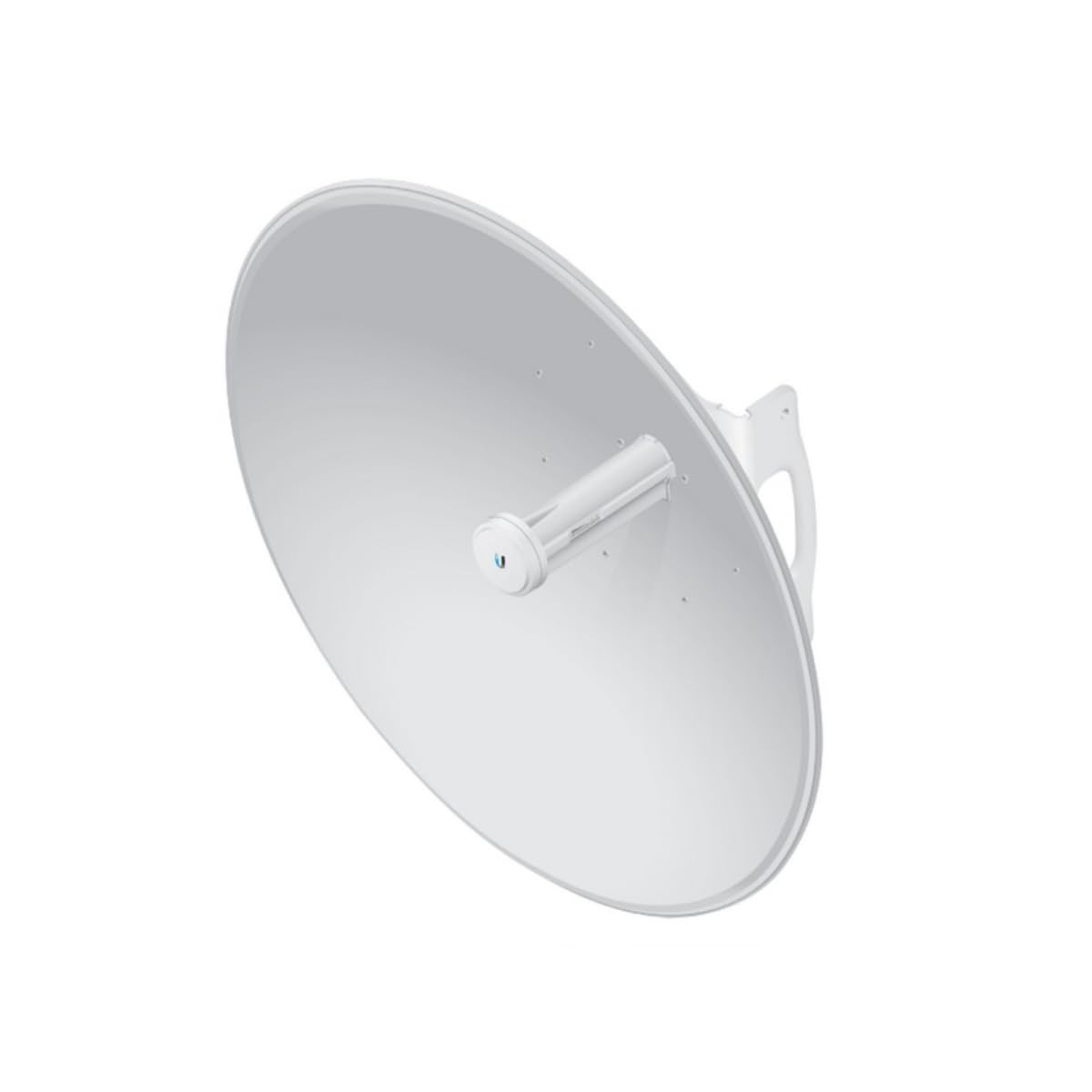

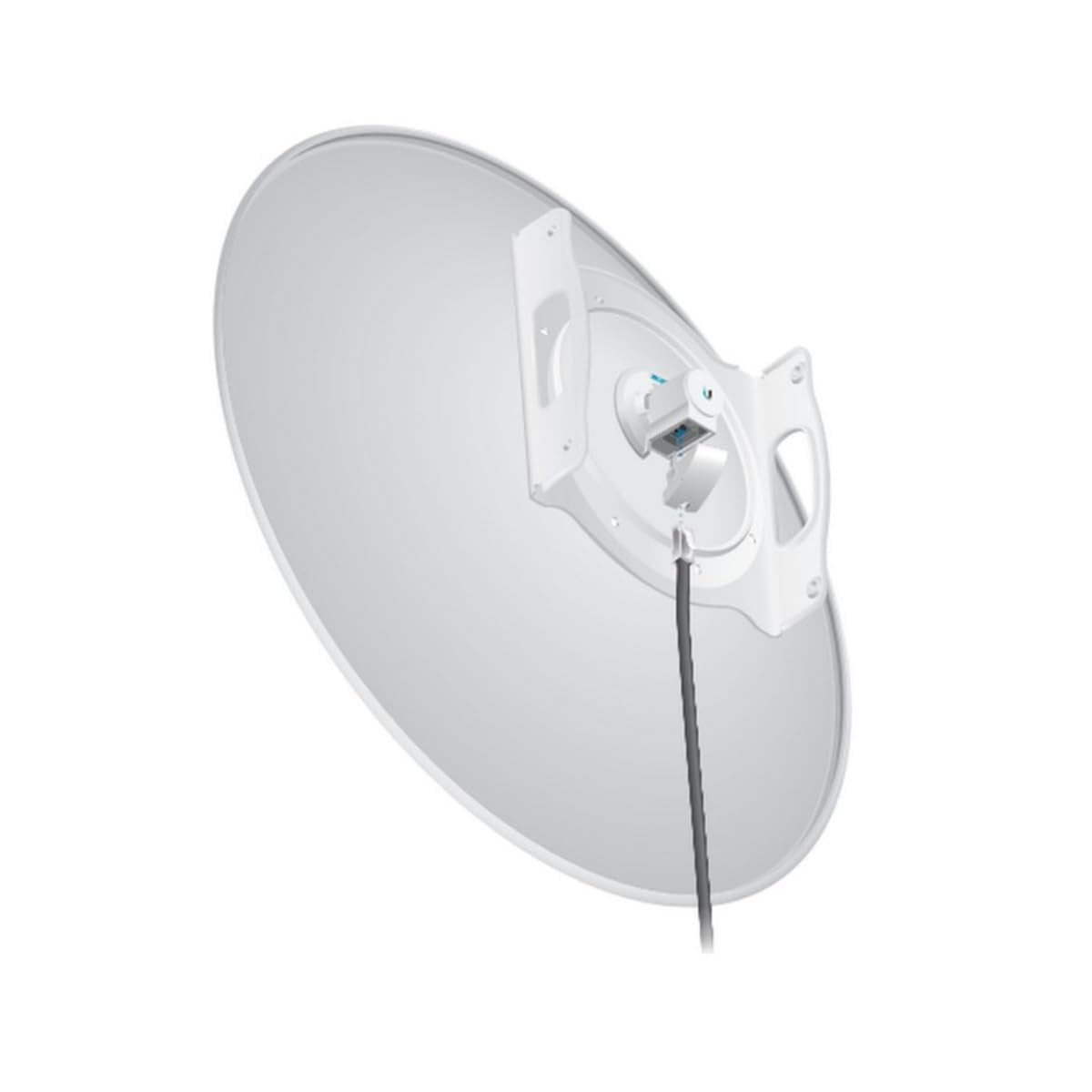

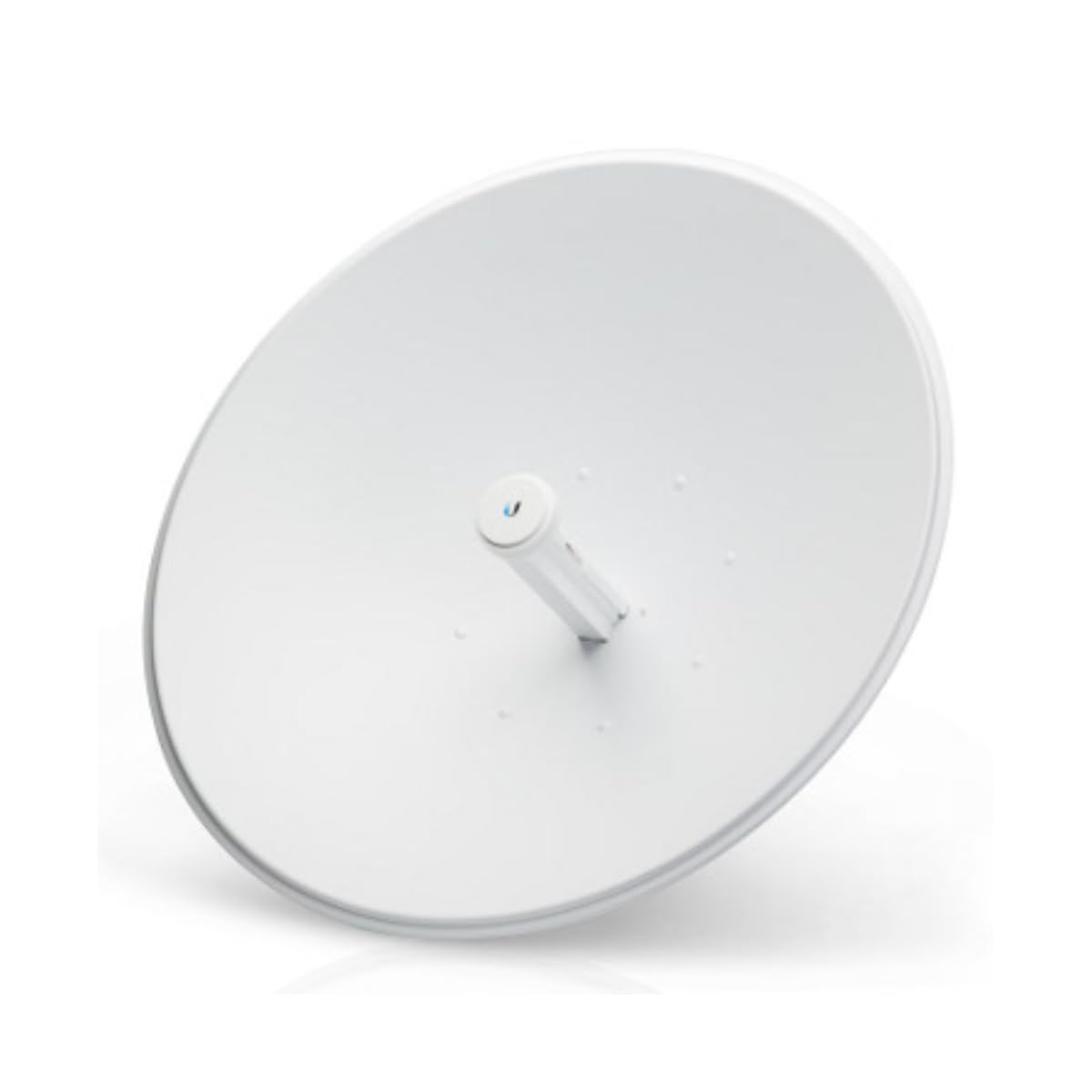

PBE-5AC-620 Ubiquiti Networks airMAX The PBE-5AC-620 PowerBeam ac High-Performance airMAX Bridge from Ubiquiti Networks is suitable for CPE deployments requiring maximum performance. A dish reflector design with proprietary airMAX ac technology, offers improved latency, noise immunity, scalability, and significantly increased throughput performance of up to 450+ Mb/s and also offers wide range of 19+ mi (30+ km). The InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance while eliminating cable losses. Ubiquiti’s airMAX engine with custom IC improves TDMA latency and network scalability.
Features
Noise Immunity
The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, to improve noise immunity. This feature is important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.
Added on:
10 February 2025
Specification
- Brand : Ubiquity
- Wireless Frequency : 5 GHz
- Inputs/Outputs : 1x RJ45 Gigabit Ethernet PoE (Unspecified)
- Sensitivity : -65 to -96 dBm
- -65 to -96 dBm : 29 dBi
- Transmit Power : 20 to 24 dBm
- RAM : 128 MB
- Storage Capacity : 8 MB
- Power Consumption : 8.5 W
- Dimensions : 24.41 x 24.41 x 15.2″ / 620 x 620 x 386 mm
- Weight : 14.11 lb / 6.4 kg
