Product Description
PDC1000S12-DB Huawei power module PDC1000S12-DB comes with original box, if purchase together with Switch, the module will insert inside Switch by default when delivery, to economical volume weight; if need delivery separately with original box, please contact Thunder-link.com sales team in advance.
Features

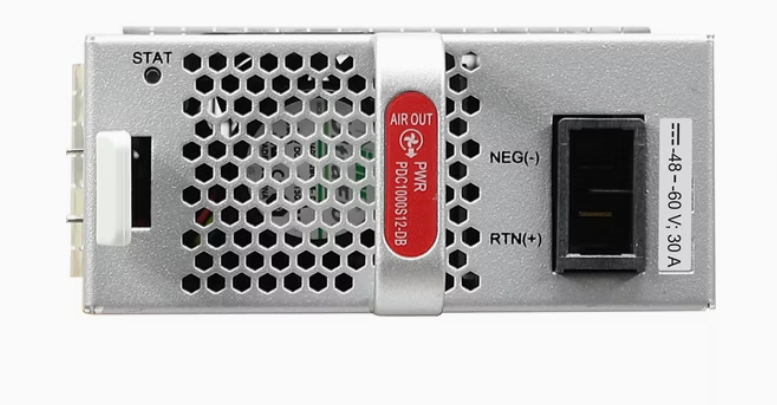

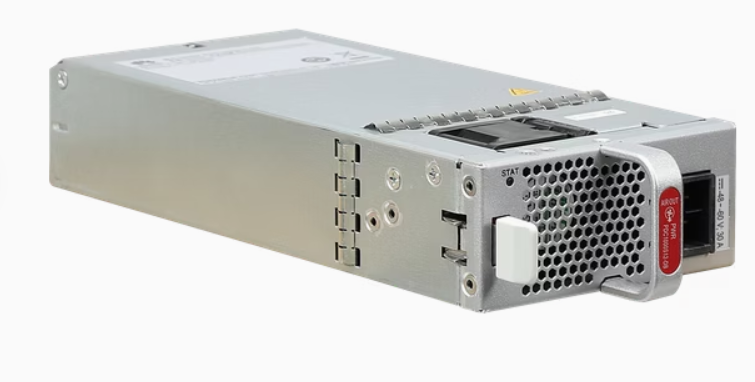

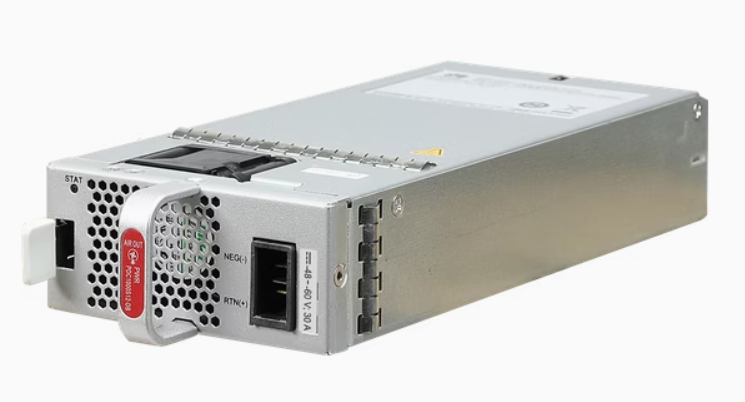

Huawei PDC1000S12-DB power module
1000W DC
Apply to S6730, S5730 Switch
Physical size: 40 mm x 90 mm x 215 mm
Weight: 1.02 kg
Added on:
19 November 2024
Specification
- Brand : Huawei
- Dimensions (W x D x H) : 40 mm x 90 mm x 215 mm (1.6 in. x 3.5 in. x 8.5 in.)
- Weight : 1.02 kg (2.25 lb)
- Rated input voltage range : -48 V DC to -60 V DC
- Maximum input voltage range : -38.4 V DC to -72 V DC
- Maximum input current : 30 A
- Output voltage : 12 V DC
- Maximum output power : 1000 W
