Product Description

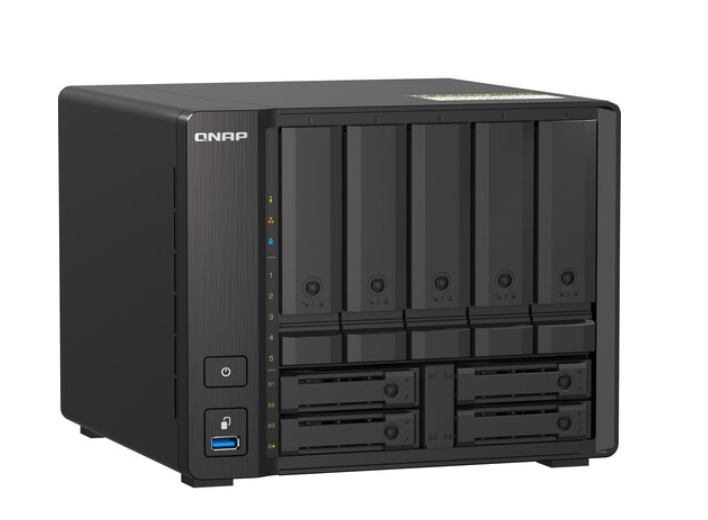

QNAP TS-h973AX-8G 9-bay NAS Powered by a 64-bit 2.2 GHz AMD Ryzen V1500B Quad-Core processor and 10GbE/2.5GbE connectivity, the TS-h973AX 9-Bay NAS Enclosure from QNAP packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5″ SATA III 6 Gb/s drive bays, two 2.5″ U.2 NVMe Gen 3 x4 / SATA III 6 Gb/s drive bays, and two 2.5″ SATA III 6 Gb/s drive bays, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX helps ensure data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost. Key Features: 5 x 3.5″ and 2 x 2.5″ SATA Drive Bays 2 x U.2 NVMe PCIe / SATA 2.5″ Drive Bays 2.2 GHz AMD Ryzen V1500B Quad-Core 8GB of DDR4 RAM
Features
Dual U.2 NVMe PCIe Gen 3 x4 SSD Slots for Enhanced I/O and Low Latency
The TS-h973AX has four 2.5″ SSD slots, with slots 1 and 2 supporting both high-performance U.2 NVMe PCIe Gen 3 x4 SSDs or economical SATA III 6Gb/s SSDs. For tackling latency-sensitive applications, you can take advantage of U.2 NVMe PCIe Gen 3 x4 SSDs that supply up to 32 Gb/s bandwidth to attain optimized performance and efficiency. You can also use QNAP’s QDA-UMP adapter to replace U.2 NVMe SSDs with cost-efficient M.2 NVMe Gen 3 x4 SSDs to maintain high-level performance while saving more costs.
Coupled with QNAP’s SSD-aware features, the TS-h973AX maximizes performance with high cost-effectiveness.
SSD Cache Acceleration
Increases IOPS performance and reduces latency for storage volumes – good for IOPS-demanding applications including virtualization and databases.
Added on:
25 March 2025
Specification
- Brand : Qnap
- CPU : Quad-Core: Up to 2.2 GHz
- Processor : AMD Ryzen V 1500B
- Memory : 8 GB DDR4
- RAM Configuration / Capacity : 1x User-Replaceable 8 GB / 2 Slots Supporting up to 64 GB
- Input Power : 100 to 240 VAC, 60 / 50 Hz
- PSU Wattage : 1 x 120 W
- Cooling : 1x 140 mm Fan
- Dimensions : 8.84 x 8.82 x 7.19″ / 22.45 x 22.4 x 18.26 cm
- Weight : 7.8 lb / 3.5 kg
