Product Description
S5735-S48P4X Huawei CloudEngine CloudEngine S5735-S series switches are developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). CloudEngine S5735-S switches support simplified operations and maintenance (O&M), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. CloudEngine S5735-S switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
Features

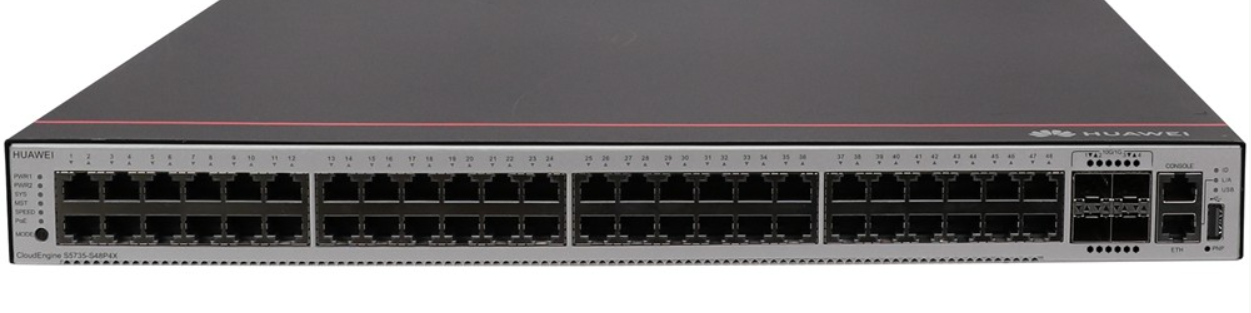

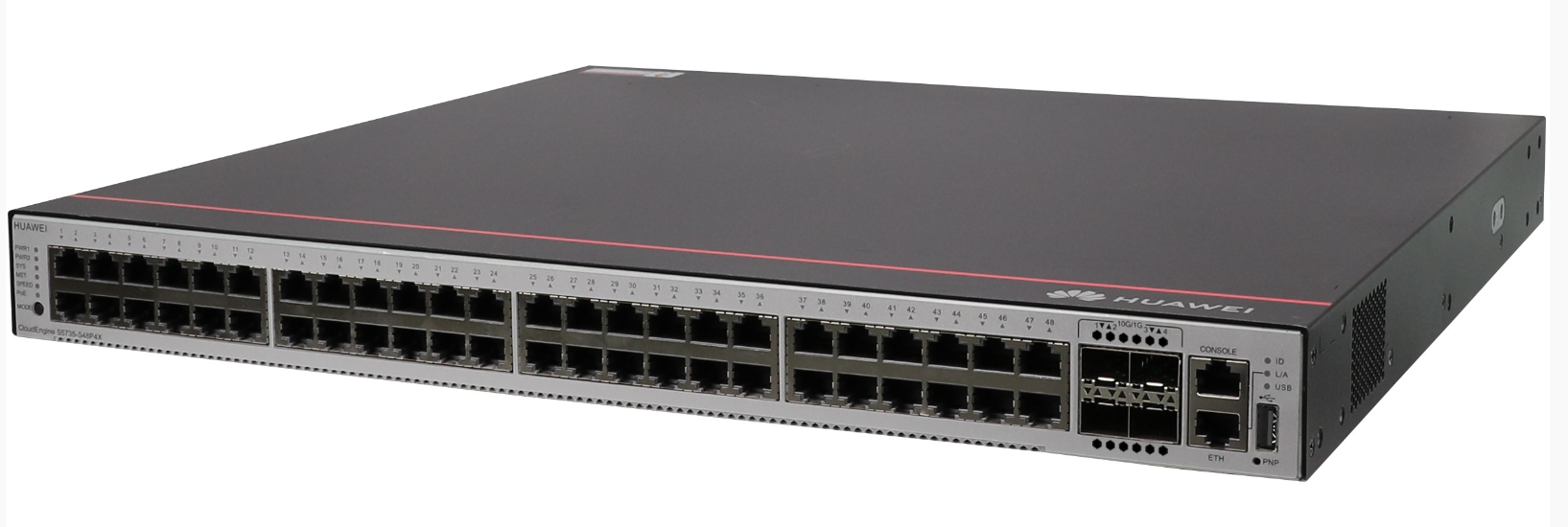

Huawei CloudEngine S5735-S48P4X switch with 48-ports 1000Base-T, 4x10GE SFP+
With 1+1 power supply backup
PoE+
Forwarding performance: 132 Mpps
Switching capacity: 176 Gbps/432 Gbps
Added on:
07 October 2024
Specification
- Brand : Huawei
- Part Number : S5735-S48P4X
- Dimensions (H x W x D) : 43.6 mm x 442 mm x 420mm
- Chassis height : 1 U
- Chassis weight : 7.64 kg
- GE port : 48(PoE+)
- USB port : USB 2.0
- Frequency : 1000 MHz
- Memory (RAM) : 1 GB
- Flash memory : Hardware: 512MB, of which 306MB is available for users
- Power supply type : 1000 W AC PoE

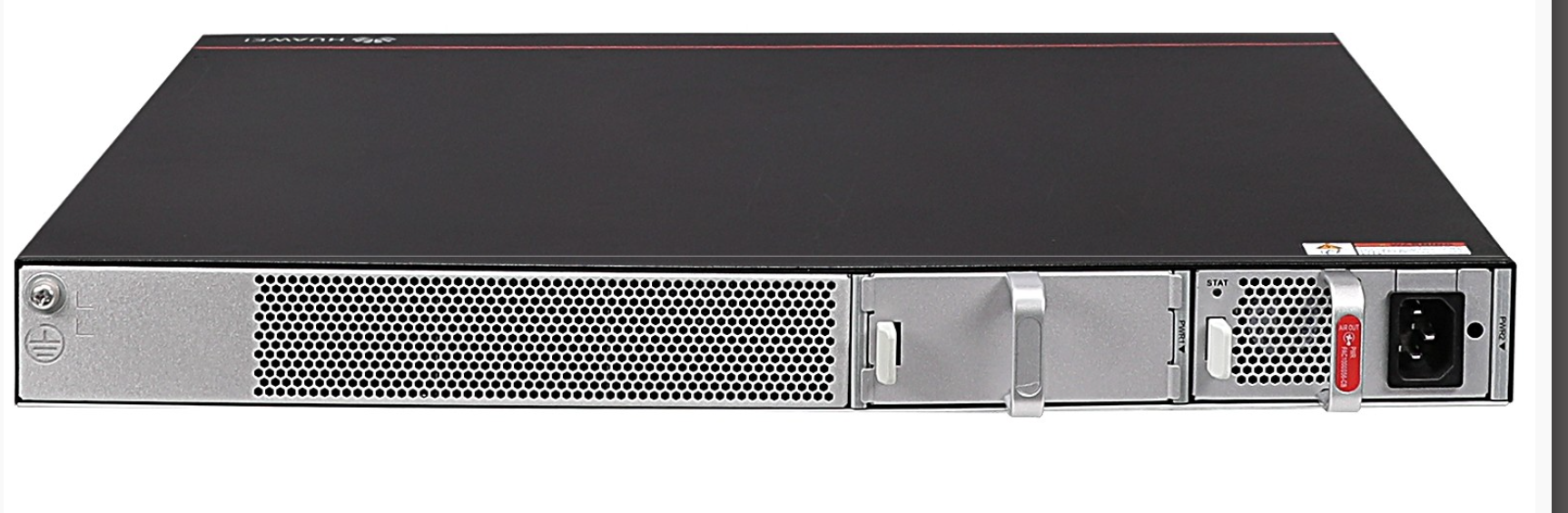

- Power supply redundancy : 1+1 NOTE: the backup power supply is optional.
- Rated voltage range : AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz
- Maximum input current : 8 A
