Product Description

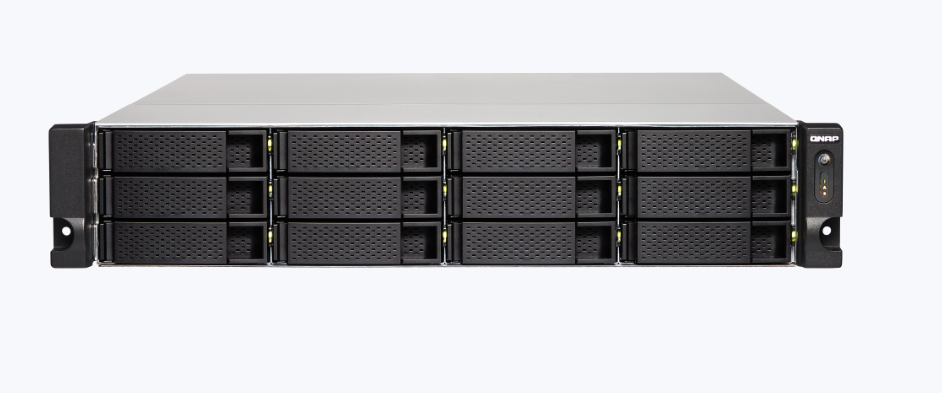

TS-1232XU-4G QNAP 12 Bay ,12 x 3.5-inch SATA 6Gb/s, 3Gb/s QNAP TS-1232XU-4G,12 Bay ,12 x 3.5-inch SATA 6Gb/s, 3Gb/s,AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor, 4 GB UDIMM DDR4 (1 x 4 GB) up to 16 GB (1 x 16 GB) ,2 x 10GbE SFP+ ,1 The TS-1232XU is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP’s QM2 expansion cards. The TS-1232XU can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more.
Features
The built-in 10GbE SFP+ ports deliver high speed for mission-critical applications such as database hosting and VM storage.
One PCIe 2.0 ×2 slot (×4 length) is available for adding a 10GbE port and/or M.2 SSD slots. With SSDs installed, Qtier auto tiering can be enabled to optimize storage utilization.
Added on:
15 July 2024
Specification
- Brand : Qnap
- part number : TS-1232XU-4G
- CPU : AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor
- CPU Architecture : 64-bit ARM
- System Memory : 4 GB UDIMM DDR4 (1 x 4 GB)
- Maximum Memory : 16 GB (1 x 16 GB)
- Memory Slot : 1 x UDIMM DDR4
- Flash Memory : 512 MB (Dual boot OS protection)
- Drive Bay : 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
- 10 Gigabit Ethernet Port : 2 x 10GbE SFP+
- USB 3.2 Gen 1 port : 4
- Form Factor : 2U Rackmount
- LED Indicators : HDD 1-12, Status, LAN, Storage expansion
- Buttons : Power, Reset
- Dimensions (HxWxD) : 89 × 482 × 534 mm
- Weight (Net) : 9.83 kg
