Product Description

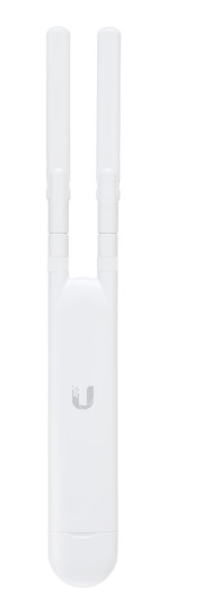

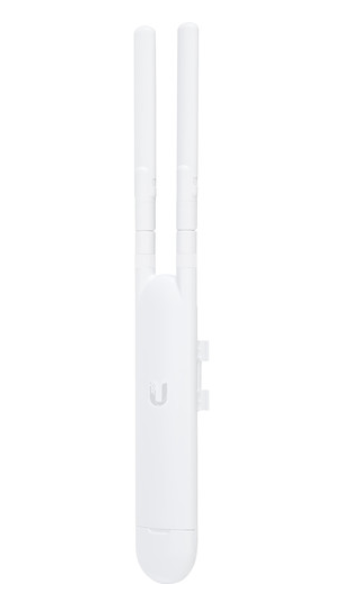

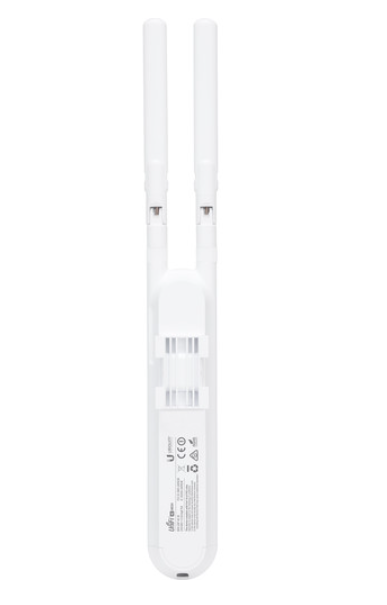

Ubiquiti Unifi UAP AC MESH Wide-Area Indoor/Outdoor Dual-Band Access Point With the indoor/outdoor UAP-AC-M-US UniFi AC Mesh Wide-Area Dual-Band Access Point from Ubiquiti Networks, users benefit from a wide coverage area reaching up to 600′ along with enhanced data transfer rates of up to 867 Mb/s on the 5 GHz frequency. These enhanced data rates and coverage capabilities are supported by a 2×2 MIMO internal antenna configuration supporting multiple data paths for a more efficient end-user network connection. Installation of the UAP-AC-M-US is simple, as it comes 802.3af PoE-compliant and includes a wall/pole/fast-mount kit. Once installed, users can take advantage of 802.11ac Wi-Fi access with speeds of up to 867 Mb/s in the 5 GHz radio band, and up to 300 Mb/s in the 2.4 GHz radio band. The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

Features

802.11 a/b/g/n/ac Wi-Fi Standards
Range of up to 600′
1 x 10/100/1000 Ethernet Port
UniFi Controller Software
Added on:
10 April 2025

Specification

  • Brand : Ubiquity
  • Wi-Fi : Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (2 x 2)
  • Number of Antennas : 2
  • Antenna Gain : 3 to 4 dBi
  • Inputs/Outputs : 1x RJ45 Gigabit Ethernet
  • Operation Modes : Access Point
  • Input Power : 24 VDC
  • Power Consumption : 8.5 W
  • Dimensions : 13.9 x 1.8 x 1.4″ / 35.3 x 4.6 x 3.4 cm
  • Weight : 0.3 lb / 0.1 kg
