Product Description

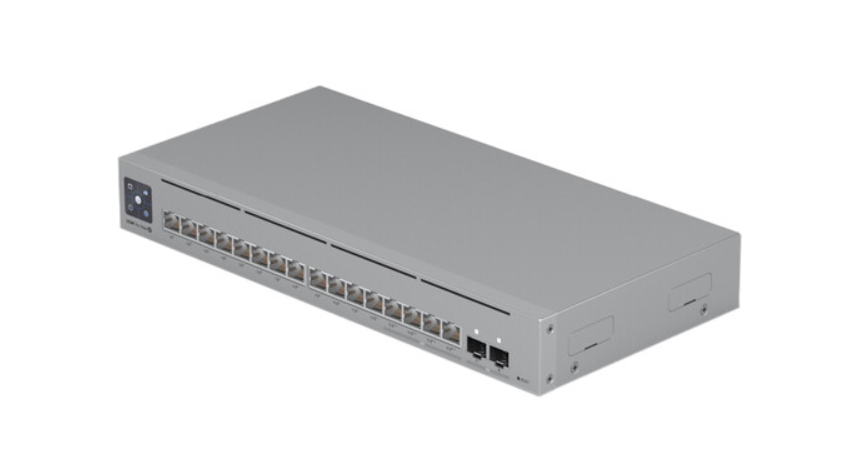

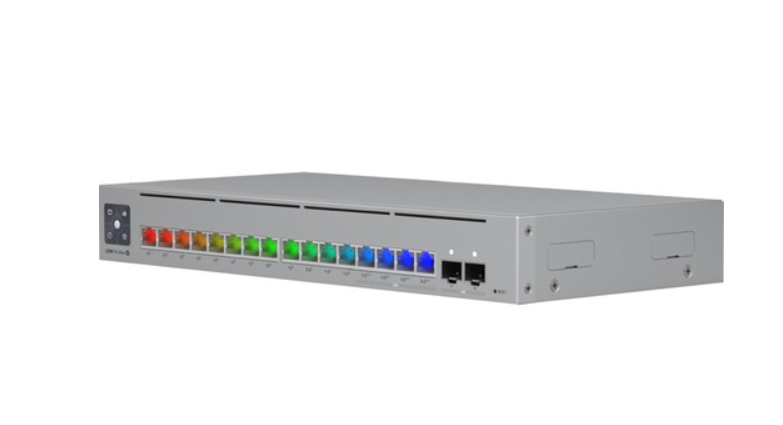

UniFi USW-Pro-Max-16-POE 16-Port 2.5G / 1G Managed Network Switch Expand your business’s network with the Pro Max 16 PoE 16-Port 2.5G / 1G Managed Network Switch from Ubiquiti Networks to support advanced IP cameras, access points, and other PoE compatible devices. Four 60W 2.5G PoE++ Ethernet ports are available alongside twelve 30W Gigabit speed Ethernet ports with a total power budget of 180W for compatible equipment. Two SFP+ ports are also available for up to 10 Gb/s uplinks.
Features
12 x Gigabit Ethernet PoE+ Ports (30W)
4 x 2.5G Ethernet PoE++ Ports (60W)
2 x 10G SFP+ Ports
84 Gb/s Switching Capacity
Added on:
17 September 2024
Specification
- Brand : Ubiquity
- Inputs/Outputs : 12x RJ45 PoE+ (30 W, 802.3at) 4x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3) 2x SFP+ 10 GbE 1x RJ45
- Switching Bandwidth : 84 Gb/s 42 Gb/s (Non-Blocking)
- PoE Power Budget : 180 W
- Layer Services Supported : Layer 3
- Security Features : Storm Control
- Forwarding Rate : 62.49 Mpps
- Switching Bandwidth : 84 Gb/s
- PoE per Port : 15.4 to 60 W
- PoE Power Budget : 180 W
- Power Supply Type : External
- Dimensions : 12.8 x 6.3 x 1.7″ / 325.1 x 160 x 43.7 mm
- Weight : 4.6 lb / 2.1 kg
