Product Description

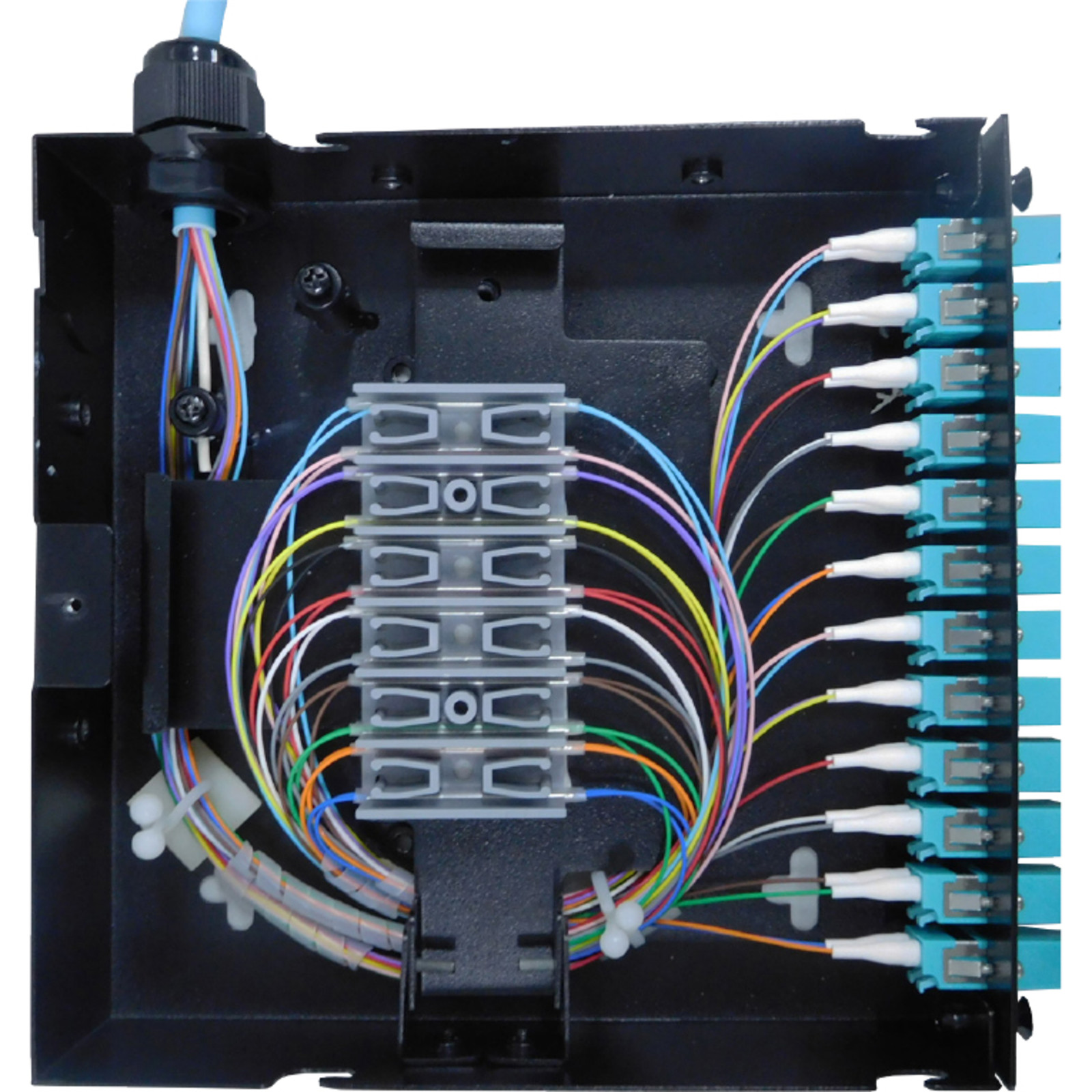

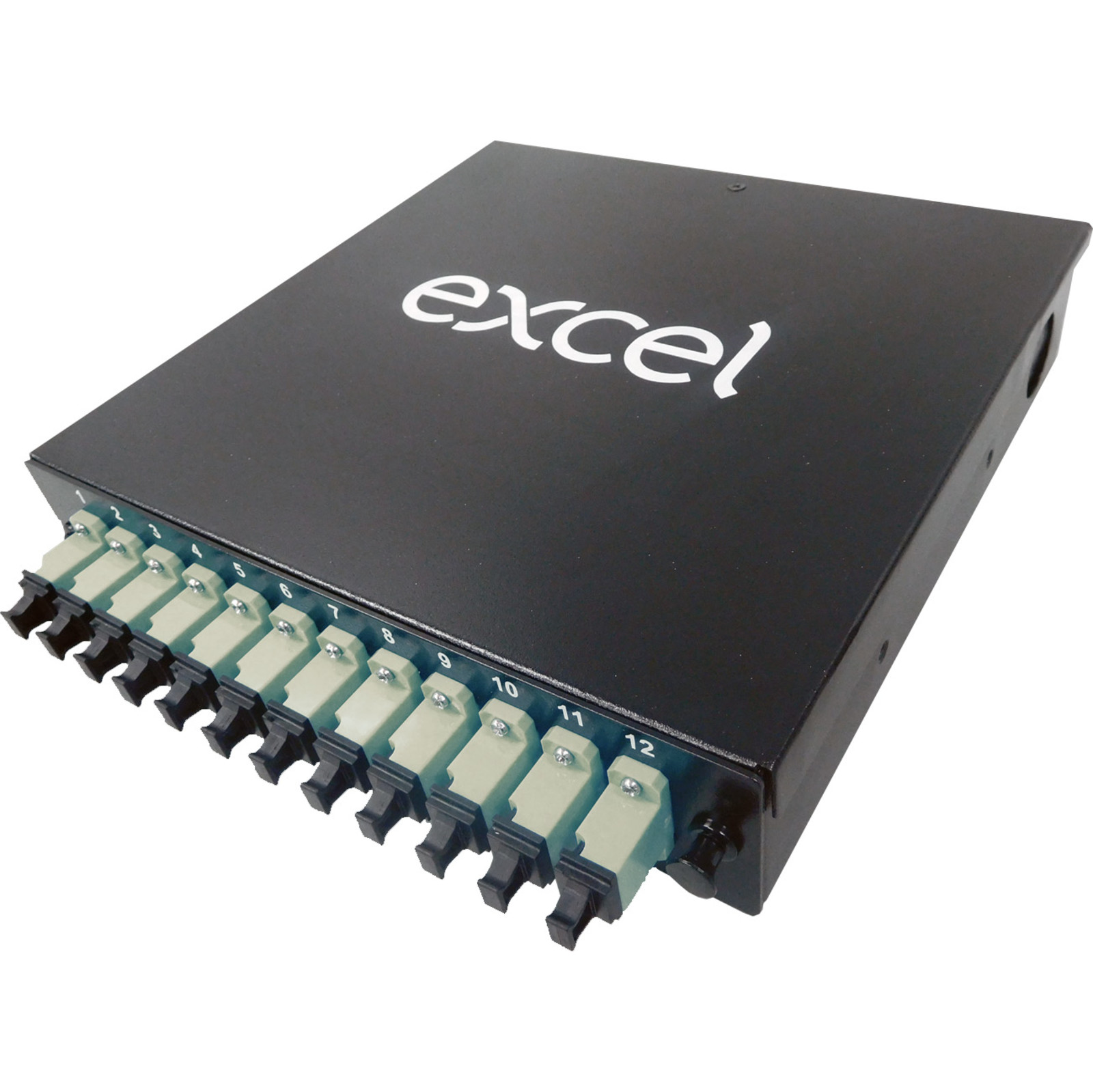

208-212 Enbeam 12 SC Splx MM (Beige) din rail box The Enbeam DIN rail box has been designed to be wall or DIN rail mounted with the capacity to hold 12 to 24 fibres. The flexibility to use either tight buffered and loose tube makes this enclosure suitable for multiple applications. The hinged splice tray platform allows full and easy access to connections and enables storage of excess fibre whilst maintaining the correct bend radius.
Features
24 way Splice Bridge
Multiple cable entry points
Accepts LC Duplex or SC Simplex adapters
Integrated FRP tie points
DIN or wall mountable
RoHS, Reach compliant
UL-94-VO
Added on:
04 June 2024
Specification
- Brand : Excel
- Part Number : 208-212
- Type of connector : SC simplex
- Suitable for number of couplers : 12
- Suitable for type of fibre : Multi mode
- Outlet direction : Straight
- Ip-rating : IP20
- Ambient temperature : -20…85 °C
- Width : 180 mm
- Height : 180 mm
- Depth : 40 mm
