Product Description

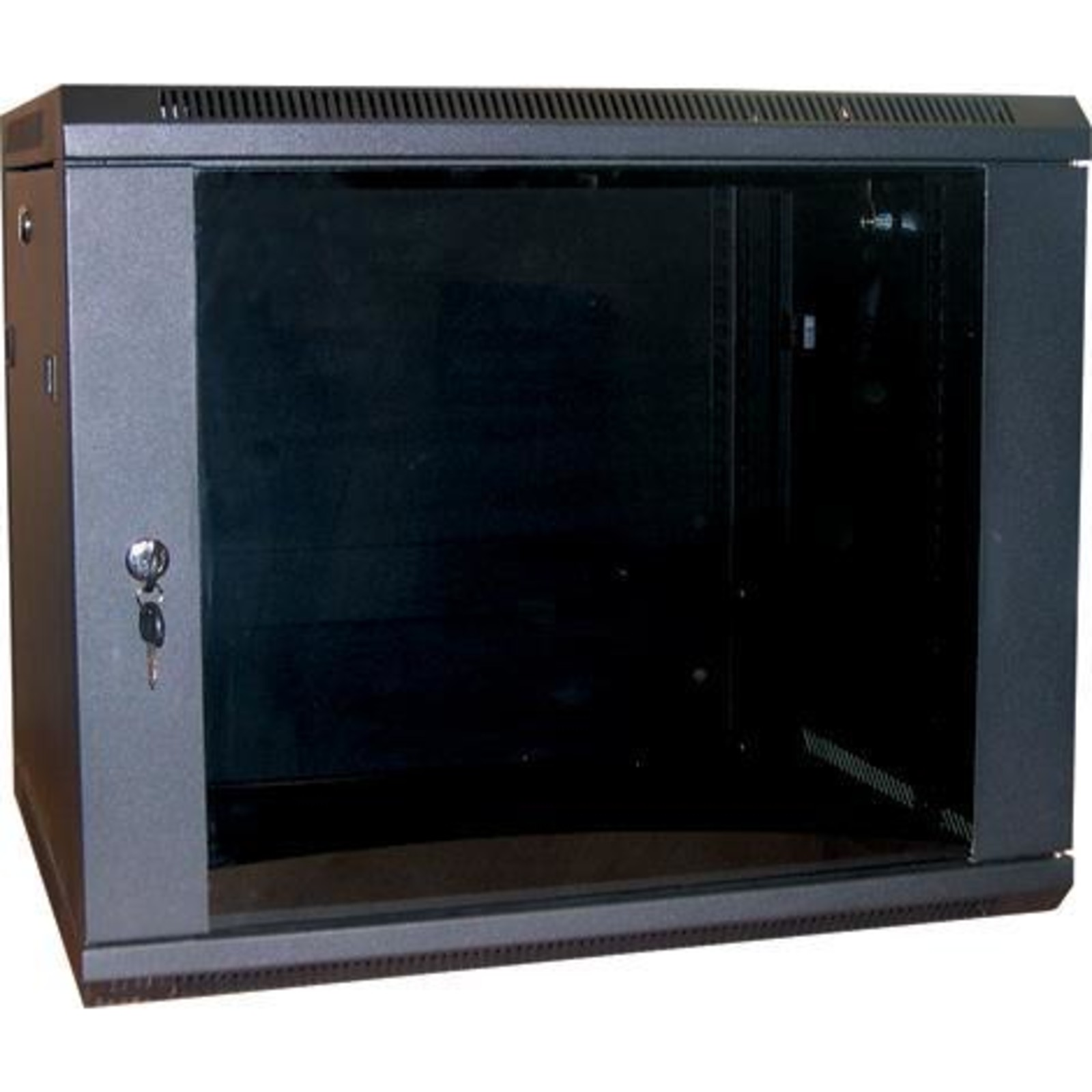

WBFP6.390SGB EXCEL 6U 390MM DEEP WALL BOX FLAT PACK BLACK WBFP6.390SGB Excel Environ WR390 Wall Rack Network Cabinet Flat Packed 6U WxD 570 mm x 390 mm Black, part of a huge range of Network Data Cabinets available from Mayflex. The Excel Environ WR is a range of wall-mounted 570 mm wide racks designed for the installation of both cabling and equipment. The WR series of Wall Racks is available in depths of 390 mm, 500 mm and 600 mm and is suitable for multiple applications including local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment.

Features

Choice of depths available (390 mm, 500 mm, 600 mm)
Available in Black or Grey
Aesthetically pleasing framed safety glass front door (IK08 Glass doors)

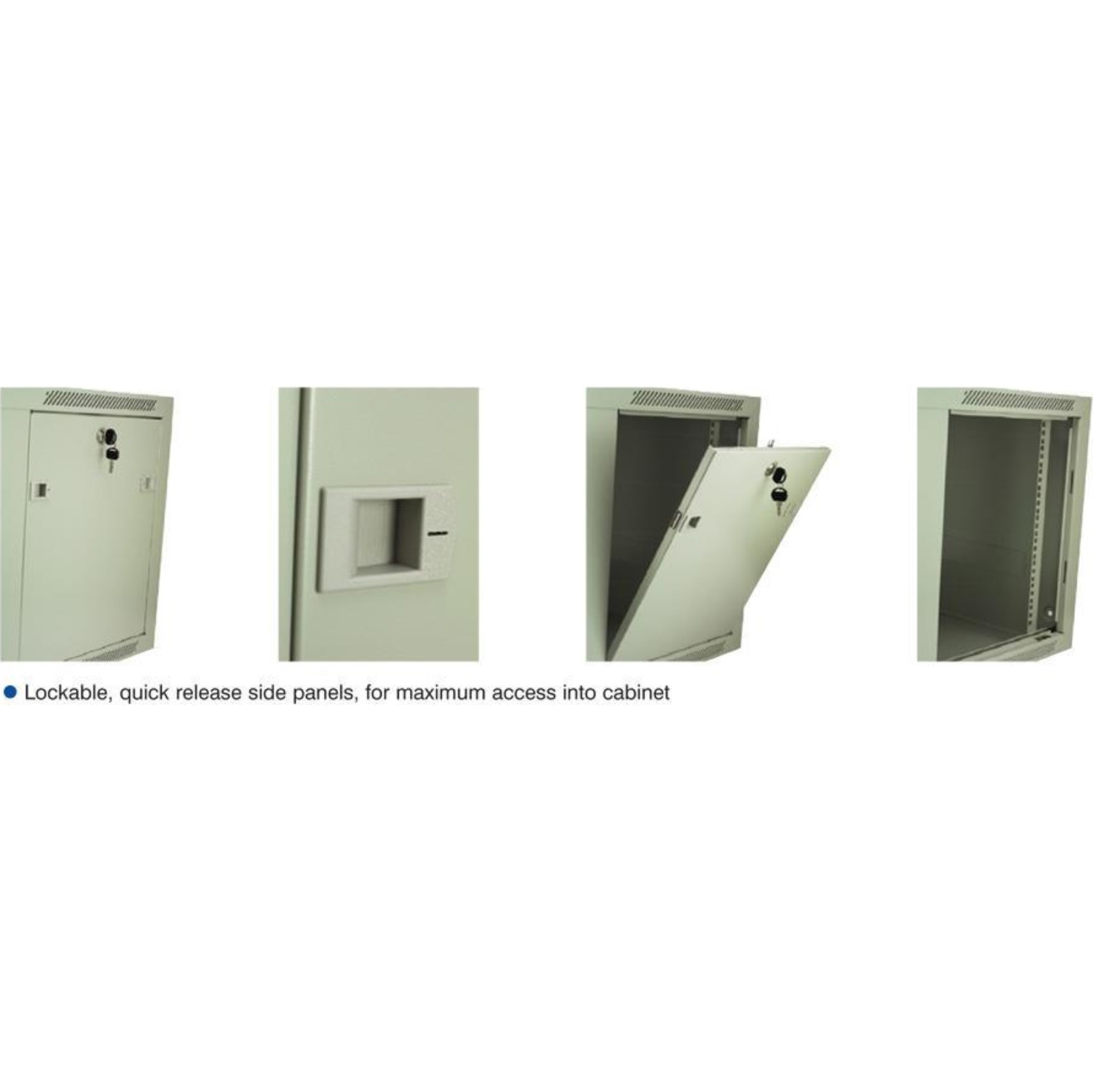

Quick release doors and side panel
Adjustable front and rear 19” mounting profiles
Removable cable entry panel in top and base
Added on:
07 May 2024

Specification

  • Brand : Excel
  • Part No : WBFP6.390SGB
  • Mounting profile : Front and rear
  • Type of profile rail : L-shaped
  • Model : With permanent frame
  • Type of ventilation : Passive
  • Width : 570 mm
  • Height : 368 mm
  • Depth : 390 mm
  • Modular spacing : 19 inch
  • Number of rack units (ru) : 6
  • Max. load capacity : 60 kg
  • Type of surface : Powder coated
  • Material : Steel
  • Colour : Black
