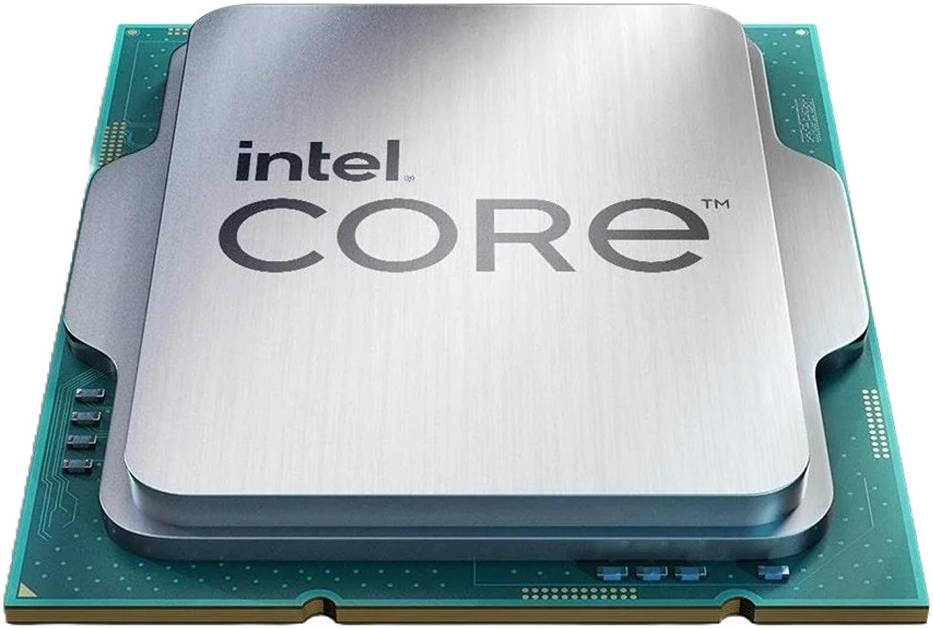

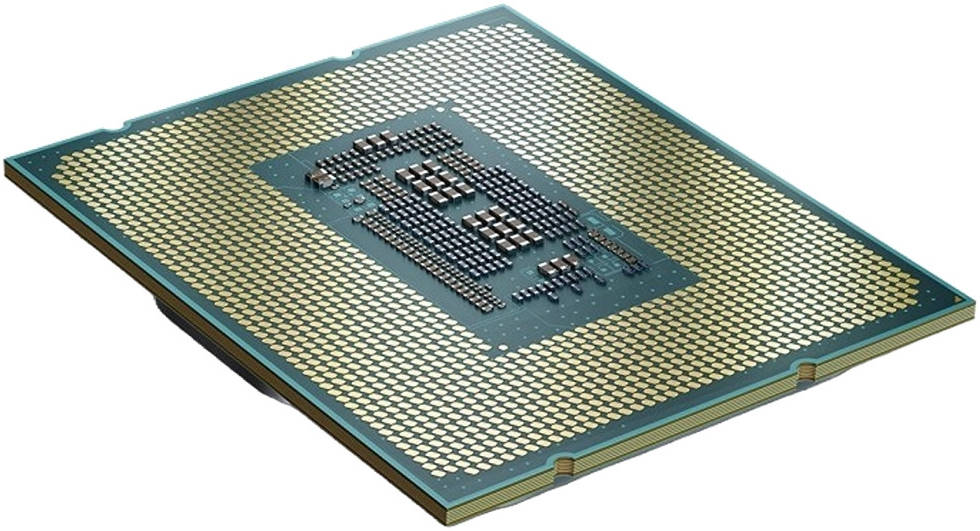

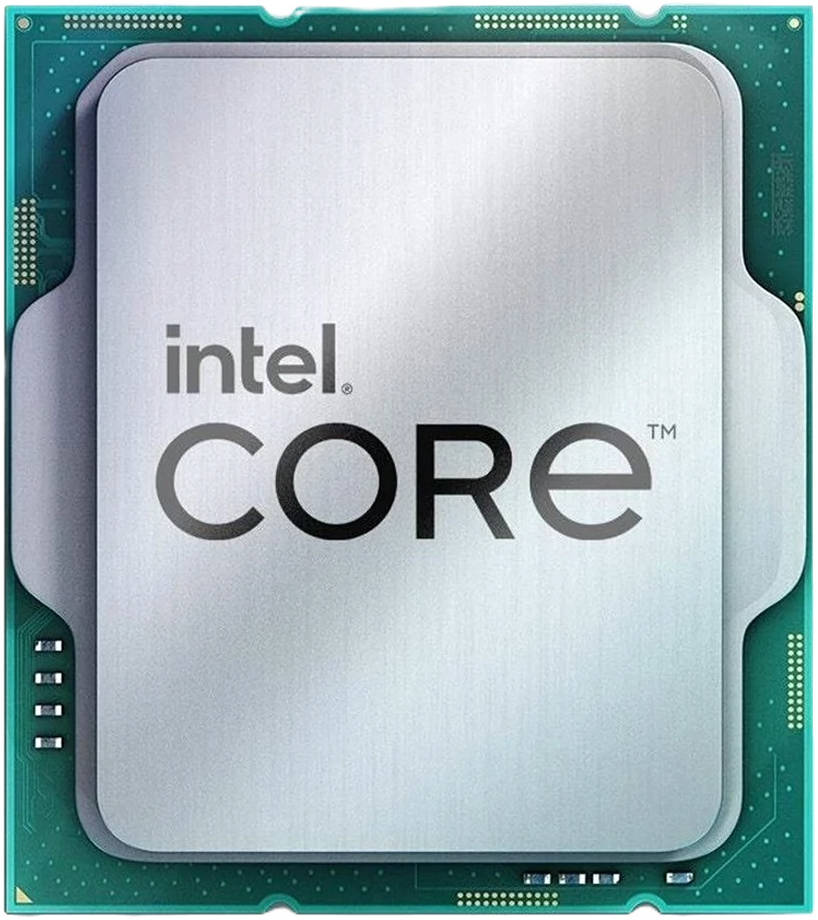

Intel Core i5-14600K 3.5 GHz 14-Core LGA 1700 14th Gen Processor, 14 Cores & 20 Threads, 24MB Cache Memory, 5.3GHz MaxTurbo Boost, Intel UHD Graphics 770, 2CH DDR5 / 192GB Max |

✅ Product Collection: Intel Core i5 Processors (14th gen)
✅ Code Name: Products formerly RAPTOR LAKE
✅ Vertical Segment: Desktop
✅ Processor Number: i5-14600K
✅ Lithography: Intel 7
✅ Use Conditions: PC/Client/Tablet, Workstation
✅ Total Cores: 14
✅ # of Performance-cores: 6
✅ # of Efficient-cores: 8
✅ Total Threads: 20
✅ Max Turbo Frequency: 5.3 GHz
✅ Performance-core Max Turbo Frequency: 5.3 GHz
✅ Efficient-core Max Turbo Frequency: 4 GHz
✅ Performance-core Base Frequency: 3.5 GHz
✅ Efficient-core Base Frequency: 2.6 GHz
✅ Cache: 24 MB Intel Smart Cache
✅ Total L2 Cache: 20 MB
✅ Processor Base Power: 125 W
✅ Maximum Turbo Power: 181 W
✅ Marketing Status: Launched
✅ Launch Date: Q4’23
✅ Embedded Options Available: No
✅ Max Memory Size (dependent on memory type): 192 GB
✅ Memory Types: Up to DDR5 5600 MT/s
✅ Max # of Memory Channels: 2
✅ Max Memory Bandwidth: 89.6 GB/s
✅ ECC Memory Supported ‡: Yes
✅ Processor Graphics ‡: Intel® UHD Graphics 770
✅ Graphics Base Frequency: 300 MHz
✅ Graphics Max Dynamic Frequency: 1.55 GHz
✅ Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1
✅ Execution Units: 32
✅ Max Resolution (HDMI)‡: 4096 x 2160 @ 60Hz
✅ Max Resolution (DP)‡: 7680 x 4320 @ 60Hz
✅ Max Resolution (eDP – Integrated Flat Panel)‡: 5120 x 3200 @ 120Hz
✅ DirectX Support*: 12
✅ OpenGL Support*: 4.5
✅ OpenCL Support*: 3.0
✅ Multi-Format Codec Engines: 2
✅ Intel Quick Sync Video: Yes
✅ Intel Clear Video HD Technology: Yes
✅ # of Displays Supported ‡: 4
✅ Device ID: 0xA780
✅ Direct Media Interface (DMI) Revision: 4.0
✅ Max # of DMI Lanes: 8
✅ Scalability: 1S Only
✅ PCI Express Revision: 5.0 and 4.0
✅ PCI Express Configurations ‡: Up to 1×16+4, 2×8+4
✅ Max # of PCI Express Lanes: 20
✅ Sockets Supported: FCLGA1700
✅ Max CPU Configuration: 1
✅ Thermal Solution Specification: PCG 2020A
✅ TJUNCTION: 100°C
✅ Package Size: 45.0 mm x 37.5 mm
✅ Intel Gaussian & Neural Accelerator: 3.0
✅ Intel Thread Director: Yes
✅ Intel Deep Learning Boost (Intel® DL Boost) on CPU: Yes
✅ Intel Speed Shift Technology: Yes
✅ Intel Turbo Boost Technology ‡: 2.0
✅ Intel Hyper-Threading Technology ‡: Yes
✅ Intel 64 ‡: Yes
✅ Instruction Set: 64-bit
✅ Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2
✅ Idle States: Yes
✅ Enhanced Intel SpeedStep Technology: Yes
✅ Thermal Monitoring Technologies: Yes
✅ Intel Volume Management Device (VMD): Yes
✅ Intel Standard Manageability (ISM) ‡: Yes
✅ Intel Control-Flow Enforcement Technology: Yes
✅ Intel AES New Instructions: Yes
✅ Secure Key: Yes
✅ Intel OS Guard: Yes
✅ Execute Disable Bit ‡: Yes
✅ Intel Boot Guard: Yes
✅ Mode-based Execute Control (MBEC): Yes
✅ Intel Virtualization Technology (VT-x) ‡: Yes
✅ Intel Virtualization Technology for Directed I/O (VT-d) ‡: Yes
✅ Intel VT-x with Extended Page Tables (EPT) ‡: Yes
